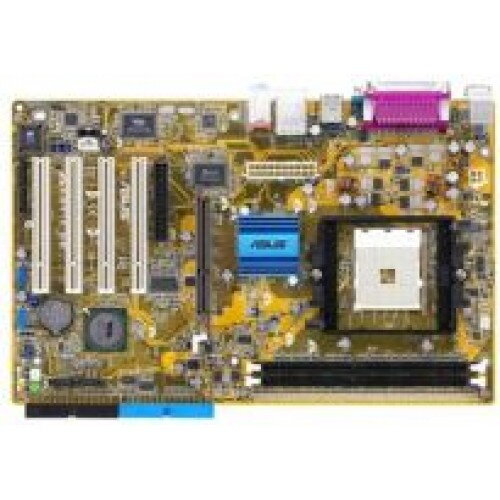

ASUS K8V-X SE 754 VIA K8T800 Socket 754 zakladna doska

CPU
AMD Socket 754 Athlon64/Sempron/ Processors
Front Side Bus
800/ MHz
Chipset
VIA K8T800

VIA VT8237R
Memory
2 x184-pin DIMM, Max. 2 GB, DDR SDRAM ,Non-ECC,Un-buffered Memory
Expansion Slots
4 x PCI

1 x AGP 8x
Storage
Southbridge

2 xSATA 3 Gb/s ports 2 x ATA133

Support RAID 0,1,
Audio
ADI AD1888 6 -Channel CODEC

S/PDIF out on back I/O port
LAN
Realtek 8201CL D version
USB
8 USB 2.0 ports
Special Features
ASUS MyLogo

ASUS EZ Flash

ASUS CrashFree BIOS 2

ASUS C.P.R.(CPU Parameter Recall)

Support S/PDIF out interface

ASUS Instant Music Lite

AMD Cool 'n' Quiet! Technology
Overclocking Features
Intelligent overclocking tools

- ASUS JumperFree

SFS (Stepless Frequency Selection)

- FSB tuning from 200 MHz up to 300MHz at 1MHz increment

- - Adjustable FSB/DDR ratio
Back Panel I/O Ports
1 x Parallel

1 x Audio I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x S/PDIF Out

1 x LAN(RJ45) port

4 x USB 2.0/1.1
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

20 -pin ATX Power connector

CD/AUX audio in
BIOS
4 Mb Flash ROM

AMI BIOS

SM BIOS 2.3

ASUS EZ Flash

ASUS MyLogo

ASUS CrashFree BIOS 2
Manageability
WOL by PME,WOR by PME
