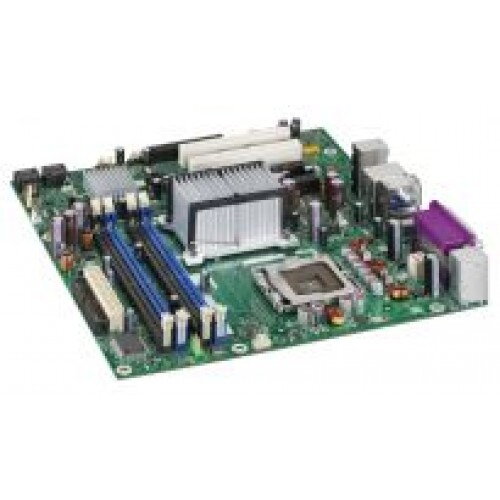

Intel Desktop Board DG965SS

Specifications

-Essentials
Status End of Interactive Support
Launch Date Q3'06
Board Form Factor microATX
Socket LGA775
Recommended Customer Price $94.00 - $97.00
Datasheet Link
Board Chipset Intel® G965 Express Chipset (Intel® 82G965 Graphics and Memory Controller)
-Memory Specifications
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR2 533/677/800
Max # of Memory Channels 2
Max # of DIMMs 4
ECC Memory Supported ‡ No
-Graphics Specifications
Integrated Graphics ‡ Yes
Graphics Output VGA
# of Displays Supported ‡ 2
Discrete Graphics PCIe x16
-Expansion Options
PCI Support 2
PCIe x1 Gen 2.x 1
PCIe x4 Gen 2.x 0
PCIe x8 Gen 2.x 0
PCIe x16 Gen 2.x 1
-I/O Specifications
USB 2.0 Configuration (External + Internal) 6+4
Total # of SATA Ports 4
# of eSATA Ports 0
RAID Configuration N/A
# of PATA Ports 1
# of Parallel Ports 1
# of Serial Ports 0
Audio (back channel + front channel) 6-ch
Integrated LAN 10/100/1000
Firewire 1+1
-Package Specifications
Max CPU Configuration 1
Low Halogen Options Available See MDDS
-Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® vPro Technology ‡ No
Intel® ME Firmware Version N/A
Intel® Remote Wake Technology No
Intel® Remote PC Assist Technology No
Intel® CIRA Technology No
TPM No
Intel® Quiet System Technology Yes
Intel® HD Audio Technology Yes
Intel® Matrix Storage Technology No
-Intel® Platform Protection Technology
Trusted Execution Technology ‡ No
Anti-Theft Technology No
