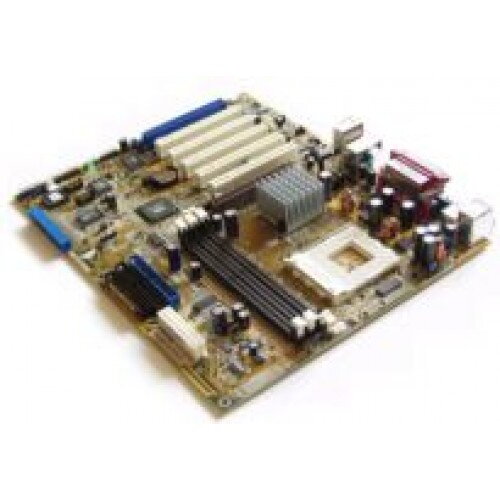

ASUS A7V8X Socket A/462 základná doska

CPU
Socket A for AMD®: Athlon XP/ Athlon/ Duron up to 2.4GHz+

Thoroughbred core CPU ready
Chipset
North Bridge: VIA®: KT400

South Bridge: VIA®: VT8235
Front Side Bus
333/266/200 MHz
Memory
3 x DDR DIMM Sockets

Max. 3 GB unbuffered *PC3200 /PC2700/PC2100/PC1600 non-ECC SDRAM Memory

(Note: PC3200 Max. to 2 banks only; PC2700 Max. to 4 banks only)
Expansion Slots
1 x AGP 8X

6 x PCI (one shared with optional ASUS proprietary wireless slot)
Serial ATA
Promise®: controller supports one ATA133 and two serial ATA connectors
IDE
2 x UltraDMA/133/100/66
Storage/RAID
RAID 0 support by two to three Parallel ATA or Serial ATA connectors. RAID 1 support by two Parallel or Serial ATA connectors.
Audio
Realtek 6-channel CODEC

S/PDIF in/out interface
LAN
Broadcom®: 10/100 Mbps or 1000 Mbps Ethernet controller
USB
VIA®: VT8235 built-in USB 2.0

6 x USB 2.0 port
Special Features
VIA®: 1394 controller

2 x 1394 port
Back Panel I/O Ports
ASUS POST Reporter

ASUS MyLogo2

ASUS Q-Fan

Multi-language BIOS

Power Loss Restart

ASUS JumperFree

SFS (Stepless Frequency Selection)

Support S/PDIF in/out interface (on audio model only)

ASUS EZ Flash

ASUS C.O.P. (CPU Overheating Protection)

AGP Warning LED
Internal I/O Connectors
CPU/Power/Chassis FAN connectors

20 pin ATX power connector

IDE LED connector

Smart Card reader connector

Chassis Intrusion, SM Bus, SIR

Game port (on audio model only)

S/PDIF in/out connector (on audio model only)

2 x 1394 port (on 1394 model only)

CD/AUX/Modem audio in (on audio model only)

2 x SATA port (on SATA model only)

Front panel audio connector (on audio model only)

1 x USB 2.0 connector support additional 2 USB 2.0 ports
BIOS
4Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, WfM2.0, BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, MyLogo2
Support Disc
Drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software

ASUS LiveUpdate Utility

InterVideo WinCinema (for A7V8X GOLD version only)
Accessories
User's Manual

IDE cable

2 x UltraDMA 133 / 100 / 66 cable

FDD cable

I/O shield

2-port USB 2.0 / Game port module

2-port IEEE 1394 module and 2 x IEEE 1394 cable (on 1394 model only)

2x Serial ATA cable (on Serial ATA model only)

Driver CD

S/PDIF in/out module (on audio model only)
Form Factor
ATX Form Factor

12" x 9.6" (30.5cm x 24.5cm)
Industrial Standard
PCI 2.2, USB 2.0
Manageability
WfM 2.0, DMI 2.0, WOR, WOL, Chassis Intrusion, SM Bus
