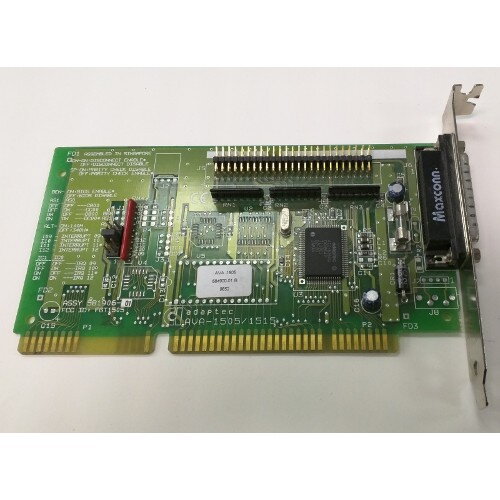

The AVA-1505 gives users a high-performance alternative to the computer's slow parallel port. It allows users to take advantage of faster SCSI versions of non-booting peripherals such scanners and zip drives. With wait times reduced up to 80%, the AVA-1505 gives users an increase in system performance, and, since SCSI is the only connection that allows the attachment of multiple external peripherals, the AVA-1505 allows users to connect more devices to their systems. This ISA to SCSI Host Adapter allows for the connection of 7 SCSI devices (internal and/or external), including hard disks, tape drives, CD-ROM drives, and removable media drives.
Supported Operating SystemsMicrosoft MS-DOS 3.xMicrosoft MS-DOS 4.xMicrosoft MS-DOS 5.xMicrosoft MS-DOS 6.xMicrosoft Windows 3.0Microsoft Windows 3.10Microsoft Windows 95Microsoft Windows 95aMicrosoft Windows 95bMicrosoft Windows 95cMicrosoft Windows 98Microsoft Windows 98 Second EditionMicrosoft Windows for Workgroups 3.11Number of devicesUp to 7 hard disk drives under DOSBus System Interface TypeISA - 16 BitExternal Connectors25-pin, DB25Internal Connectors50-pin, flat cableData Transfer RateUp to 5 Mbytes/sec (synchronous, on the SCSI bus)System RequirementsIBM Compatible PC with available ISA expansion slotMicrosoft® Windows 95, Windows 3.1, Windows for Workgroups, Windows NT, and MS-DOSSCSI peripheralPackage ContentsAVA-1505 ISA-to-Fast SCSI host adapter Adaptec EZ-SCSI Lite v3.1 Software Standard 3-position internal SCSI ribbon cable Complete user documentation External connector-DB-25-pin (Macintosh-style)Supported ProtocolsSCSI-2 (Supports SCSI-1 and SCSI-2 devices)Advanced SCSI FeaturesAdvanced SCSI Programming Interface (ASPI) compliantDisconnect/reconnectSynchronous and Asynchronous data transferElectrical TerminationsSingle-ended, passiveBoard Dimensions3.5" x 6.25" (8.9 cm x 15.9 cm)Power Consumption5.0V +/- 0.25V at 0.51 ampsexcluding terminator powerOperating Characteristics0 to 55°C (32°F to 131°F)Storage Characteristics-55 to 85°C10% to 90% non condensing relative humidity
