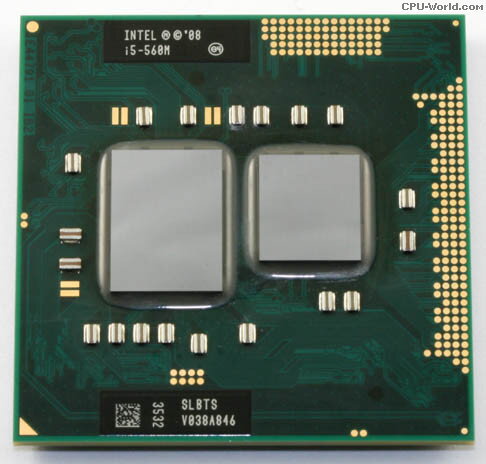

Intel Core i5-560M

Essentials
Product Collection
Legacy Intel® Core™ Processors

Code Name
Products formerly Arrandale

Vertical Segment
Mobile

Processor Number
i5-560M

Status
Discontinued

Launch Date
Q3'10

Lithography
32 nm

CPU Specifications
# of Cores
2

# of Threads
4

Processor Base Frequency
2.66 GHz

Max Turbo Frequency
3.20 GHz

Cache
3 MB Intel® Smart Cache

Bus Speed
2.5 GT/s

TDP
35 W

Supplemental Information
Embedded Options Available
No

Datasheet
View now

Memory Specifications
Max Memory Size (dependent on memory type)
8 GB

Memory Types
DDR3 800/1066

Max # of Memory Channels
2

Max Memory Bandwidth
17.1 GB/s

Physical Address Extensions
36-bit

ECC Memory Supported ‡
No

Processor Graphics
Processor Graphics ‡
Intel® HD Graphics for Previous Generation Intel® Processors

Graphics Base Frequency
500 MHz

Graphics Max Dynamic Frequency
766 MHz

Intel® Flexible Display Interface (Intel® FDI)
Yes

Intel® Clear Video HD Technology
Yes

Intel® Clear Video Technology
Yes

Macrovision* License Required
No

# of Displays Supported ‡
2

Expansion Options
PCI Express Revision
2.0

PCI Express Configurations ‡
1x16

Max # of PCI Express Lanes
16

Package Specifications
Sockets Supported
BGA1288, PGA988

Max CPU Configuration
1

TJUNCTION
105°C

Package Size
rPGA 37.5mmx 37.5mm, BGA 34mmx28mm

Processing Die Size
81 mm2

# of Processing Die Transistors
382 million

Advanced Technologies
Intel® Turbo Boost Technology ‡
1.0

Intel vPro® Platform Eligibility ‡
Yes

Intel® Hyper-Threading Technology ‡
Yes

Intel® Virtualization Technology (VT-x) ‡
Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes

Intel® VT-x with Extended Page Tables (EPT) ‡
Yes

Intel® 64 ‡
Yes

Instruction Set
64-bit

Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2

Idle States
Yes

Enhanced Intel SpeedStep® Technology
Yes

Thermal Monitoring Technologies
Yes

Intel® Fast Memory Access
Yes

Intel® Flex Memory Access
Yes

Security & Reliability
Intel® AES New Instructions
Yes

Intel® Trusted Execution Technology ‡
Yes

Execute Disable Bit ‡
Yes
