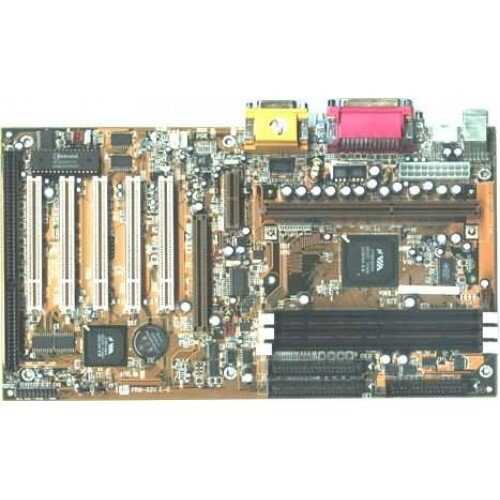

DTK PRM-92V E-0 Slot 1 zakladna doska

CPU Slot:

Support Intel Pentium III, Pentium II processor

CPU FSB support 66/100/133 MHz

Chipset:

VIA Apollo Pro 133

Architecture:

ISA, IBM PC/AT and PCI 2.1 compatible

AGP 2X support - high performance, quality 3D accelerator by eliminating the 3D bottlenecks with direct access to system memory. Max. bandwidth 528MB/sec

133MHz Front Side Bus

Main Memory:

3 DIMM sockets constitute 6 memory banks

DIMM Type - 16/64/128/256MB 168-pin 3.3V SDRAM with SM Bus connections for memory detection

ECC Functions ensure data correction and integrity (SDRAM only)

Maximum Size - 768MB

Power Management Features:

True green functions: support SMM, SMI and CPU stop clock

ACPI/PC97 compatible

H/W Monitoring CPU voltage, System Temp., Fan speed (optional)

S/W Management: Winbond Hardware Doctor Utility (optional)

LAN, Modem Ring-in wakeup function

Audio:

AC-Link with AC97 Compliant

Software Audio with AC97 Codes

I/O Interface:

Two fast serial ports (16550)

One EPP/ECP parallel port

Built-in FDC supports 1.2M/1.44M/2.88M FDD

Two enhanced PCI IDE channels which support up to 4 IDE devices with PIO Mode 4 transfers up to 16.6MB/sec

Support Ultra DMA/66 transfers up to 66MB/sec

PS/2 mouse and keyboard connectors

Double Deck USB connectors

IrDA / FIR support

System BIOS:

Vendor - Award

ROM Type - 256KB Flash ROM

ACPI/Plug and Play support

Built-in Trend™ ChipAway Virus Anti-Virus Program

Expansion Slots:

5 PCI bus master

1 16-bit ISA

1 32-bit AGP 4X

1 AMR slot

Form Factor:

ATX

305mm (W) x 170mm(L) 4 Layer PCB
