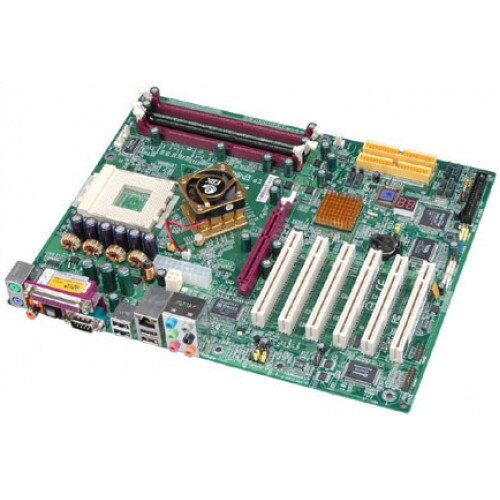

EPoX EP-8RDA6+PRO 462(A) NVIDIA nForce2 Ultra 400 socket 462 zakladna doska

ModelBrandEPoXModelEP-8RDA6+ Pro
Supported CPUCPU Socket Type462(A)CPU TypeAthlon XP / Athlon / DuronFSB400/333MHz
ChipsetsChipsetNVIDIA nForce2 Ultra 400South BridgeNVIDIA nForce2 MCP
MemoryNumber of Memory Slots3×184pinMemory StandardDDR 400Maximum Memory Supported3GBChannel SupportedDual Channel
Expansion SlotsAGP Slots1 x AGP 4X / 8XPCI Slots6
Storage DevicesPATA2 x ATA100 4 Dev. MaxSATA 1.5 Gb/s6SATA RAID0/1/0+1Additional RAID ControllerSil 3114
Onboard VideoOnboard Video ChipsetNone
Onboard AudioAudio ChipsetAC97 CodecAudio Channels8 Channels
Onboard LANLAN ChipsetCicada CIS8201Max LAN Speed10/100/1000Mbps
Rear Panel PortsPS/22COM1LPT1USB 1.1/2.04 x USB 2.0S/PDIF Out1 x Optical, 1 x CoaxialAudio Ports6 Ports
Internal I/O ConnectorsOnboard USB4 x USB 2.0Onboard 13942 x 1394a
Physical SpecForm FactorATXDimensions12.0" x 9.6"Power Pin20 Pin
FeaturesFeaturesSupport KBPO (Keyboard Power ON) functionSupport Wake-On-LAN by PMESupport USB Resume in S3Onboard Post-Port LED displaySupport AGP-Master for protection against improper AGP card insertion Power BIOS for excellent over clocking features:Support Asynchronous FSB/AGP and FSB/DIMM timing mode1MHz fine tuning on FSB, AGP timingSupport BIOS adjustable CPU multiplier amp; Core voltage, FSB clock, AGP clock, Vdd voltage, DIMM frequency and voltage settings
