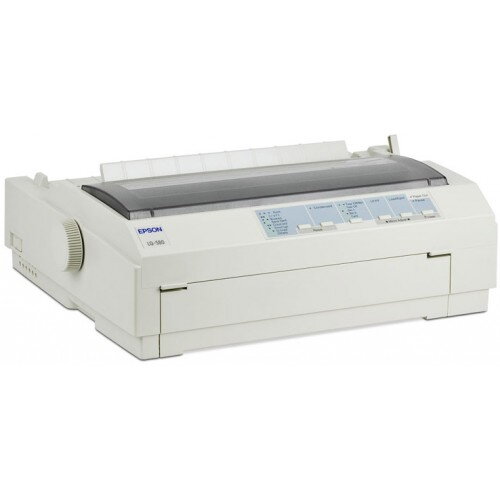

Epson LQ-580 ihličková tlačiareň

PRINTING METHOD
Impact Dot Matrix
NUMBER OF PINS IN HEAD
24 pins
PRINT DIRECTION
Bi-directional with logic seeking
PRINT SPEED
High speed draft 10 cpi 400 cps
LQ 15 cpi 150 cps
Draft 15 cpi 450 cps
LQ 12 cpi 120 cps
Draft 12 cpi 360 cps
LQ 10 cpi 100 cps
Draft 10 cpi 300 cps
LQ 20 cpi condensed 200 cps
Draft 20 cpi condensed 300 cps
LQ 17 cpi condensed 171 cps
Draft 17 cpi condensed 257 cps
PRINT CHARACTERISTICS
Character Sets
1 legal character set

14 international character sets

13 character code tables (Standard)

Italic, PC437, PC850, PC860, PC861, PC863, PC865, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO 8859-15
BITMAP FONTS
Epson Draft
10, 12, 15 cpi
Epson Roman
10, 12, 15 cpi, Proportional
Epson Sans Serif
10, 12, 15 cpi, Proportional
Epson Courier
10, 12, 15 cpi
Epson Prestige
10, 12 cpi
Epson Script
10 cpi
Epson Script
C Proportional
Epson OCR-B
10 cpi
Epson Orator
10 cpi
Epson Orator-S
10 cpi
SCALABLE FONTS
Epson Roman
8 to 32 points
Epson Sans Serif
8 to 32 points
Epson Roman T
8 to 32 points
Epson Sans Serif H
8 to 32 points
BAR CODE FONTS
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet
PRINTABLE COLUMNS - PITCH (CPI)
10 cpi
Character 10

Character per line 80
12 cpi
Character 12

Character per line 96
15 cpi
Character 15

Character per line 120
17 cpi condensed
Character 17.1

Character per line 137
20 cpi condensed
Character 20

Character per line 160
PAPER HANDLING
Paper Path
Manual Insertion

(Front in, Top out)
(Rear in, Top out)

Tractor

(Front in, Top out)

(Rear in, Top out)

(Bottom in, Top out)

Cut Sheet Feeder

(Rear in, Top out)
Cut Sheet Size
Width: 100-257mm (3.9-10.1")

Length: 100-364mm (3.9-14.3")
Envelopes
No. 6, No. 10
Continuous Paper Size
Width: 101.6-254mm (4.0-10.0")

Length: Max. 559mm (22.0")

* Can also print labels
Paper Thickness
Cut Sheet
Single sheet 0.065-14mm (0.0025-0.0055")

Multi-page forms 0.12-0.39mm (0.0047-0.015")
Envelopes
0.16-0.52mm (0.0063-0.0205")

Continuous Paper

Single sheet/Multi-page forms

0.065-0.39mm (0.0025-0.015")
Continuous Forms With Labels
Base Sheet 0.07-0.09mm (0.0028-0.0035")

Total Sheet 0.16-0.19mm (0.0063-0.0075")
Resolution
360 x 180 dpi maximum (letter quality)

360 x 360 dpi maximum (raster graphics)
Paper Feeding Standard
Friction
Front in, Top out

Rear In, Top out
Push Tractor
Rear In, Top out
Pull Tractor
Front in, Top out

Rear In, Top out

Bottom In, Top out
Optional Feeder
Cut Sheet Feeder
Rear In, Top out
Push-Pull Tractor
Rear In, Top out
Copies
Original + 4 copies
Line Spacing
1/6 inch or programmable by 1/360 inch
INPUT DATA BUFFER
64 K Byte
INTERFACE
Standard
Centronics®-type 8-bit parallel interface

(IEEE-1284 Nibble mode)
Option
Expansion slot (Optional Type B interface)
RIBBON CARTRIDGE
Colour
Black
Type
Fabric Ribbon Cartridge
Ribbon Life
Approx 2 million characters

(LQ 10 cpi, 48 dots/characters)
ACOUSTIC NOISE
Approx 49dB (A) (ISO 7779 pattern)
RELIABILITY
MVBF (Mean Point Volume Between Failure)
19 million lines (except print head)
MTBF (Mean Time Between Failure)
10000 POH (25% duty cycle)
Print Head Life
Approx 200 million strokes/wire
CONTROL PANEL
6 switches, 8 LEDs
ENVIRONMENTAL CONDITIONS OPERATING
Temperature
