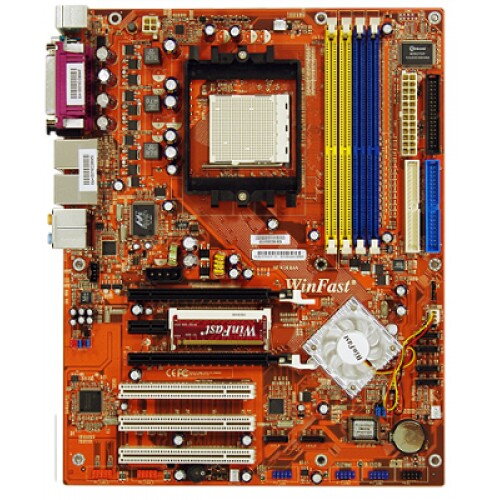

Foxconn NF4SK8AA-8EKRS Socket 939 NVIDIA nForce4 SLI ATX

Processor
Socket 939 for AMD Athlon™ 64 and 64 FX processors
Chipset
NVIDIA NF4 SLI
Front Side Bus
Up to 2000 MT/s HyperTransport™
Memory
Dual channel DDR400 x4, support up to 4GB
VGA on Die
N/A
Expansion Slots
2 x PCIe x16, 1 x PCIe x1, 3 x PCI slots
IDE
ATA133 x 2 (w/ RAID)
Serial ATA(SATA)/RAID
Serial ATA II x 6 with RAID 0,1,0+1,JBOD and cross-controller RAID
Audio
Integrated 7.1, Realtek ALC 850 (AC97 interface) - support S/PDIF-out
LAN
GbE x2, dual rear ports (PHY Marvell 88E1111-RCJ, PCI-Ex 88E8053)
IEEE1394
2 x headers
Back Panel I/O Ports
1 x PS/2 Keyboard amp; Mouse

1 set 7.1 channel Audio Jack (6 jacks)

1 x COM

1 x Parallel

2 x LAN

4 x USB 2.0

1 x Coax S/PDIF out port

1 x Fiber S/PDIF out port
Internal I/O Connectors
1 x CD IN

2 x 1394a headers

3 x USB 2.0 headers, support 6 ports

1 x COM2 header

1 x IrDA header

1 x Speaker header

1 x Front audio header
BIOS Features
LPC-4Mb, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Support CD
Chipset Drivers, DirectX 9.0, RAID Driver, VGA Driver, USB 2.0 Driver, Audio Driver, Network Driver, Adobe Reader 6.0, SuperUtilities, Norton Internet Security
Standards/Manageability
USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001
Special Features
Wake on ring, LAN, USB, keyboard amp; mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver, overclocking, MediaShield
Form Factor
ATX (12” x 9.6”)
