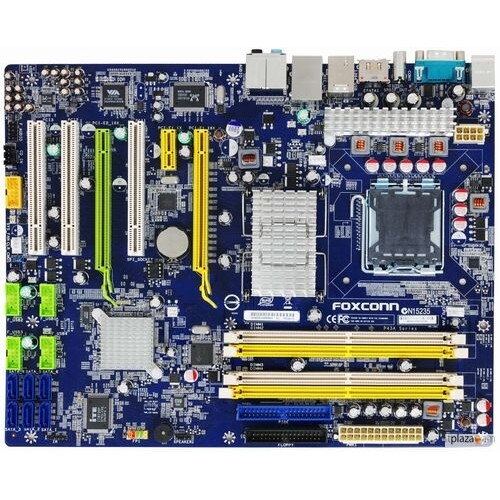

Foxconn P43A LGA775

Processor Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Celeron® Dual-Core processors, Socket T (LGA775)

Chipset Intel® P43 + ICH10

Front Side Bus 1600(oc**)1333/1066/800 MHz (FSB)

Memory Dual channel DDR2 1066/800/667 x 4 DIMMs, Max. 8GB

VGA on Die Discreted

Expansion Slots 2* PCIe2.0 x16, 1* PCIe2.0 x1, 3* PCI

IDE 1* ATA133

Serial ATA(SATA)/RAID 6* SATAII

Audio 7.1 channel HDA by Realtek® ALC888GR

LAN Gigabit LAN by Realtek® RTL8110SC

IEEE1394 N/A

Back Panel I/O Ports 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x S/PDIF Out Coaxial port

1 x Audio jack supports 6 jacks

4 x USB 2.0 ports

1 x RJ45 LAN ports

1 x Serial port

Internal I/O Connectors 1 x ATX 24-pin power connector

1 x 8-pin ATX 12V power connector

2 x 4-pin CPU / System smart fan connectors

1 x 3-pin NB fan connectors

1 x Floppy disk drive connector

1 x CD-in connector

1 x Front Panel header

1 x Buzzer (reserved)

4 x USB 2.0 headers support additional 8 ports

6 x Serial ATAII connectors

1 x ATA133 IDE connector

1 x Intrusion Alarm header

1 x Intel Azalia header

1 x IrDA header

1 x Speaker

BIOS Features 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Support CD Drivers, Adobe Reader, SuperUtilities, Norton Internet Security

Standards/Manageability PCI 2.3, USB2.0, DMI 2.5

Special Features ** Achieved by overclocking

* 2* PCIe x16 Gen2.0 with ATI CrossFireX™ support

Form Factor ATX (12" x 9.6")
