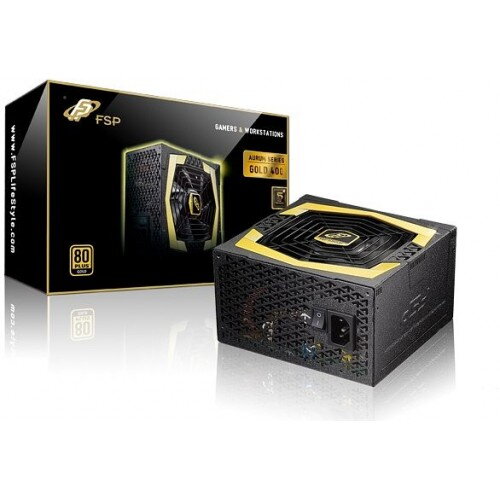

FSP Fortron AURUM GOLD 400W (AU-400) ATX12V /EPS 12V 80PLUS GOLD Certified Power Supply with Intel Haswell Ready

Model

Brand

FSP Group

Model

AURUM GOLD 400W
Spec

Type

ATX12V v2.3 / EPS12V v2.92

Maximum Power

400W

Fans

1 x 120mm PWM Controlled FDB Fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

2

PCI-Express Connector

1 x 6+2-Pin

SATA Power Connector

4

SLI

No

Haswell Support

Yes

CrossFire

No

Modular

No

Efficiency

gt;90%

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

115 / 230 V

Input Frequency Range

47 - 63 Hz

Input Current

6A @ 115V, 3A @ 230V

Output

+3.3V@24A, +5V@22A, +12V1@18A, +12V2@18A, -12V@0.3A, +5VSB@3.0A

MTBF

gt;100,000 Hours

Approvals

CE, FCC, CB, UL, TUV

Dimensions

5.9"(W) x 5.51"(D) x 3.38" (H)

Weight

4.25 lbs.
Features

Connectors

1 x Main connector (20+4Pin)

1 x 4+4 Pin EPS 12V CPU

3 x Peripheral

4 x SATA

1 x Floppy

1 x PCI-E

Features

Compatible with latest Intel / AMD CPUs, supports Intel Core i7
Ultra high efficiency @90%+ | 80+ GOLD level certified
Industrial grade component
Arrow-shaped ventilation holes
Energy saver standby @ 1-watt
Thermal coated (black) casing with gold crown
Secure on/off power switch
Complete OVP, OCP, SCP Protection
Input Fuse Protection
