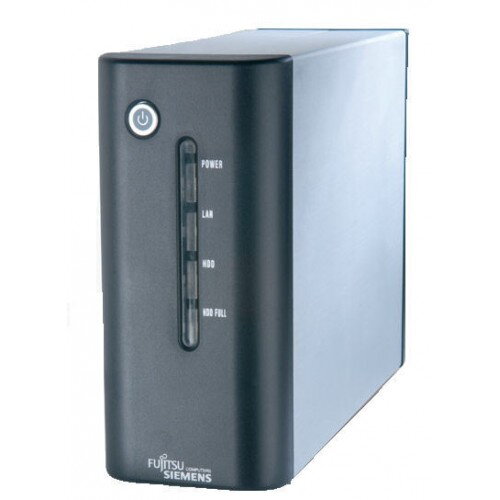

Fujitsu Siemens STORAGEBIRD LAN2 NH-222A

Physical specifications

Dimensions

209 x 135 x 72 mm

Weight

approx. 2100 g

Operating temperature

0 ~ 35°C

Storage temperature

10 ~ 65°C

Technical specifications

Internal SATA hard drive

320, 500, 750 GB

Spindle speed

7200 RPM

File system

Ext3

Interface

10/100/1000 Ethernet

Configuration

via web interface

Protocol

SMB and FTB

MTBF

20,000 h

AC adapter

+12 V DC / 3 A

Power consumption

36 W max.

Power on/off button (front panel)

Reset button (rear panel)

LEDs: Power (blue), LAN (Link/Act, green), HDD activity

(green), HDD full

Gigabit Ethernet 10/100/1000 base T (full duplex operation,

auto-speed select, auto negotiation)

Integrated web based user interface

Languages: English, German, French, Italian, Spanish

Easy network configuration with DHCP client (default) or

Automatic Private IP Adressing (APIPA), fixed IP can be

configured

®

Supports CIFS/SMB for easy integration into Microsoft

®

Windows networks

Built-in FTP server

Integrated HTTP web server

Supports 32 concurrently connected users, up to 50 user

accounts

Password security for access to the hard drive

Power management (HD sleep mode, FAN sleep mode,

configuration of timeout setting through user interface)

MAC filter amp; IP filter

Firmware upgrade possible
