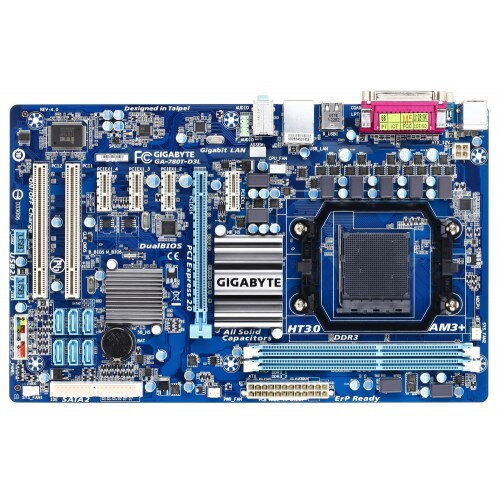

GIGABYTE GA-780T-D3L (rev. 4.0)

CPUAM3+ Socket:Support for AMD AM3+ FX processorSupport for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor(Please refer "CPU Support List" for more information.)Hyper Transport Bus4400 MT/sChipsetNorth Bridge: AMD 760GSouth Bridge: AMD SB710Memory2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)Dual channel memory architectureSupport for DDR3 1666(O.C.)/1333/1066 MHz memory modulesSupport for ECC memory modules (Note 2)(Please refer "Memory Support List" for more information.)AudioRealtek ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel (Note 3)Support for S/PDIF OutLANRealtek GbE LAN chip (10/100/1000 Mbit)Expansion Slots1 x PCI Express x16 slot, running at x164 x PCI Express x1 slots(All PCI Express slots conform to PCI Express 2.0 standard.)2 x PCI slotsStorage InterfaceSouth Bridge:1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devicesSupport for SATA RAID 0, RAID 1, RAID 10, and JBODUSBSouth Bridge:Up to 10 USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x IDE connector6 x SATA 3Gb/s connectors1 x CPU fan header2 x system fan headers1 x power fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header2 x USB 2.0/1.1 headers1 x Clear CMOS jumperBack Panel Connectors1 x PS/2 keyboard/mouse port1 x parallel port1 x serial port1 x coaxial S/PDIF Out connector6 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks (Line In/Line Out/Microphone)I/O ControllerITE IT8728 chipH/W MonitoringSystem voltage detectionCPU/System temperature detectionCPU/System/Power fan speed detectionCPU overheating warningCPU/System/Power fan fail warningCPU/System fan speed control (Note 4)BIOS2 x 16 Mbit flashUse of licensed AWARD BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0bUnique FeaturesSupport for @BIOSSupport for Q-FlashSupport for Xpress BIOS RescueSupport for Download CenterSupport for Xpress InstallSupport for Xpress Recovery2Support for EasyTune (Note 5)Support for Smart RecoverySupport for Auto GreenSupport for On/Off ChargeSupport for 3TB+ UnlockSupport for Q-ShareBundle SoftwareNorton Internet Security (OEM version)Operating SystemSupport for Microsoft® Windows 7/ Vista/ XPForm FactorATX Form Factor; 30.5cm x 19cmNote(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of physical memory installed.
(Note 2) Use of a CPU that supports ECC is required if you wish to install ECC memory.
(Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.RemarkDue to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
