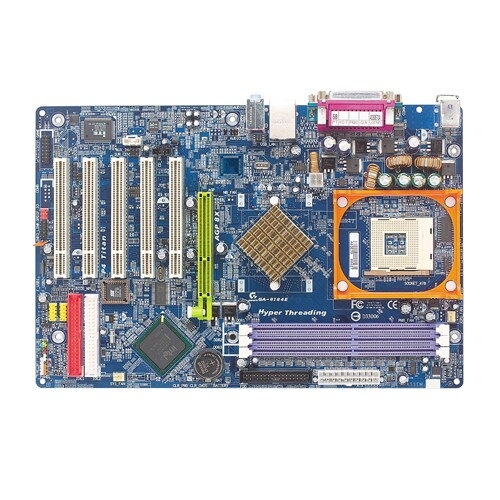

GIGABYTE GA-8I848E (rev. 1.0) socket 478

Supports 800MHz FSB Pentium® 4 Processor with HT Technology
New generation DDR400 architecture
Supports AGP 8X interface for higher graphics performance
Provides 6 USB 2.0 ports for high-speed connectivity
Integrated high quality 6-channel AC’97 audio with Jack-Sensing
CPU
Socket 478 for Intel® Pentium® 4 processor.
Chipset
Norht Bridge : Intel® 848P MCH
South Bridge : Intel® ICH4
Integrated Peripherals :
Realtek ALC655 CODEC
Front Side Bus
800 / 533 / 400 MHz FSB
Memory
Type: DDR 400 / 333 / 266 support
Max capacity: 2 GB
DIMM slots: 3
Internal I/O Connectors
2 x USB 2.0 (supports 4 ports by cable)
1 x S/P DIF input/output pin header
2 x UltraDMA 100/66 Bus Master IDE
1 x FDD
CD/AUX in
1 x Game port pin header
Expansion Slots
1 x AGP 8x slot
5 x PCI slots (PCI 2.3 compliant)
Back Panel Connectors
2 x USB 2.0 ports
1 x LPT port
2 x COM ports
3 x Audio ports (Line-in / Line-out / MIC)
2 x PS/2 ports (Keyboard/Mouse)
Form Factor
ATX
30.5cm x 20.2cm
H/W Monitoring
ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
2M bit flash ROM, Award BIOS
Other Features
Xpress3
EasyTune™ 4
@BIOS
Q-Flash™
