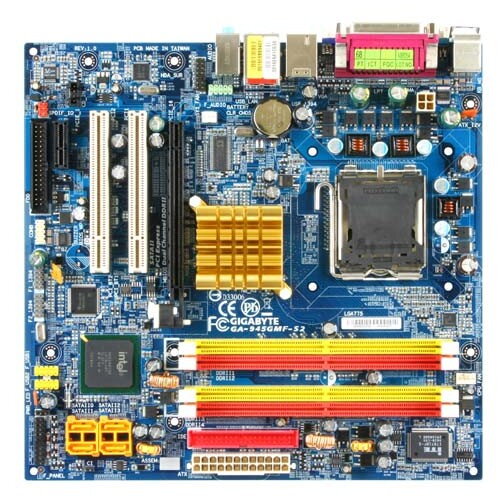

GIGABYTE GA-945GMF-S2 (rev. 1.0)

CPUSupports Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processorsSupports 1066/800/533MHz FSBChipsetNorthbridge: Intel® 945G Express ChipsetSouthbridge: Intel® ICH7Realtek RTL8111B Gigabit Ethernet controllerRealtek ALC883 audio codecMemory4 DDR II DIMM memory slots (supports up to 4GB memory)Supports 1.8V DDR II DIMMSupports dual channel DDR II 667/533/400 DIMM* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.Internal I/O Connectors1 24-pin ATX power connector1 4-pin ATX 12V power connector1 floppy connector1 IDE connector4 SATA 3Gb/s connectors1 CPU fan connector1 system fan connector1 front panel connector1 front audio connector1 CD In connector1 SPDIF In/Out connector1 HDA_SUR connector2 USB 2.0/1.1 connectors for additional 4 ports by cables2 IEEE 1394a connectors for additional 2 ports by cables1 COMB connector1 Chassis Intrusion connector1 power LED connectorExpansion Slots1 PCI Express x 16 slot1 PCI Express x 1 slot2 PCI slotsBack Panel Connectors1 PS/2 keyboard port1 PS/2 mouse port1 parallel port1 serial port (COMA)1 VGA port4 USB 2.0/1.1 ports1 IEEE 1394a port1 RJ-45 port3 audio jacks (Line In / Line Out / MIC In)H/W MonitoringSystem voltage detectionCPU temperature detectionCPU / System fan speed detectionCPU warning temperatureCPU / System fan failure warningCPU smart fan controlForm FactorMicro ATX24.4 cm x 23.3 cmBIOS1 4 Mbit flash ROMUse of licensed AWARD BIOSSupports Virtual Dual BIOSPnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.Other FeaturesSupports @BIOSSupports Download CenterSupports Q-FlashSupports EasyTune5Supports Xpress InstallSupports Xpress Recovery2Supports Virtual Dual BIOS (Xpress BIOS Rescue)
