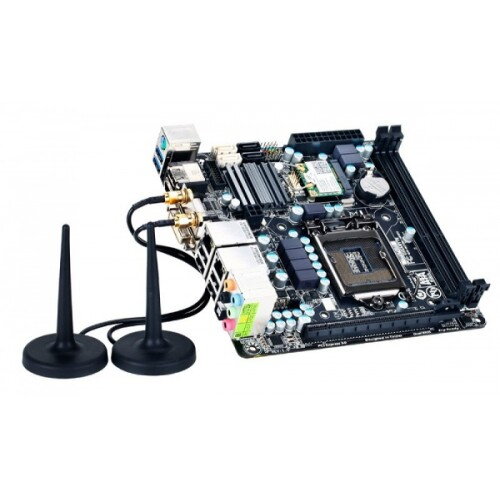

GIGABYTE GA-H77N-WIFI LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

CPUSupport for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1155 packageL3 cache varies with CPU(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)ChipsetIntel® H77 Express ChipsetMemory2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.Dual channel memory architectureSupport for DDR3 2200(OC)/1600/1333/1066/800 MHz memory modules* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.Support for non-ECC memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor:1 x DVI-I port, supporting a maximum resolution of 1920x12002 x HDMI ports, supporting a maximum resolution of 1920x1200AudioRealtek ALC892 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutLAN2 x Realtek GbE LAN chip (10/100/1000 Mbit)Wireless Communication moduleWi-Fi 802.11 b/g/n, Supports Intel Wireless Display (WiDi)Bluetooth 4.0, 3.0+HS, 2.1+EDRExpansion Slots1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.Storage InterfaceChipset:2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.USBChipset:Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Internal I/O Connectors1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x serial port header2 x SATA 6Gb/s connectors2 x SATA 3Gb/s connectors1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Clear CMOS jumperBack Panel Connectors1 x PS/2 keyboard/mouse port2 x HDMI ports2 x antenna connectors1 x DVI-I port2 x USB 3.0/2.0 ports4 x USB 2.0/1.1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)I/O ControlleriTE I/O Controller ChipH/W MonitoringSystem voltage detectionCPU/System temperature detectionCPU/System fan speed detectionCPU fan speed control* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.BIOS2 x 64 Mbit flashUse of licensed AMI EFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0aUnique FeaturesSupport for @BIOSSupport for Q-FlashSupport for Xpress InstallSupport for EasyTune* Available functions in EasyTune may differ by motherboard model.Support for eXtreme Hard Drive (X.H.D)Support for Auto GreenSupport for ON/OFF ChargeSupport for Q-ShareSupport for EZ SetupSupport for Intel Wireless Display (Intel WiDi)Exclusive Bluetooth 4.0/WiFi moduleBundle SoftwareNorton Internet Security (OEM version)Intel® Rapid Start TechnologyIntel® Smart Connect TechnologyIntel® Smart Response TechnologyOperating SystemSupport for Microsoft® Windows 8/7/XPForm FactorMini-ITX Form Factor; 17.0cm x 17.0cmRemarkDue to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
