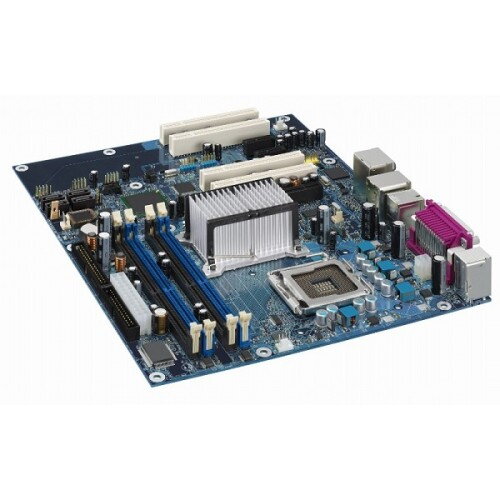

Intel® Desktop Board D945PVS
Supported processors
The Intel® Desktop Board D945PVS supports one Intel® processor in an LGA775 socket. See the table below for a complete list of supported processors.
Processors not specifically listed by type and rated speed could have requirements unsupported by the design of the desktop board. Use of unsupported processors may result in improper operation, damage to the desktop board or processor, or reduced product life.
The sSpec number is also known as specification number. This five-character string (for example: SL36W or XL2XL) is printed on the processor and used to identify the processor. You can find this number on the processor or on the label that came with your boxed processor.
Choose your processor family:
Intel® Pentium® D Processor
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor
Intel Pentium D Processor
Processor Number
Processor Speed
System Bus Frequency
L2 Cache Size
BIOS Version
960

(sSpec SL9AP amp; SL9K7 only)
3.60 GHz
800 MHz
2x2 MB
0096 or greater
950

(sSpec SL94P amp; SL9K8 only)
3.40 GHz
800 MHz
2x2 MB
0096 or greater
945

(sSpec SL9QQ only)
3.40 GHz
800 MHz
4MB
0096 or greater
940
3.20 GHz
800 MHz
2x2 MB
0065 or greater
930
3 GHz
800 MHz
2x2 MB
0065 or greater
925

(sSpec SL9D9 amp; SL9KA only)
3 GHz
800 MHz
4MB
0096 or greater
920
2.80 GHz
800 MHz
2x2 MB
0065 or greater
915
2.80 GHz
800 MHz
4MB
0077 or greater
840
3.20 GHz
800 MHz
2x1 MB
0057 or greater
830
3 GHz
800 MHz
2x1 MB
0057 or greater
820
2.80 GHz
800 MHz
2x1 MB
0057 or greater
805
2.66 GHz
533 MHz
2x1 MB
0057 or greater
Intel Pentium 4 Processor
Processor Number
Processor Speed
System Bus Frequency
L2 Cache Size
BIOS Version
672
3.80 GHz
800 MHz
2 MB
0057 or greater
670
3.80 GHz
800 MHz
2 MB
0057 or greater
662
3.60 GHz
800 MHz
2 MB
0057 or greater
661
3.60 GHz
800 MHz
2 MB
0077 or greater
660
3.60 GHz
800 MHz
2 MB
0057 or greater
651
3.40 GHz
800 MHz
2 MB
0077 or greater
650
3.40 GHz
800 MHz
2 MB
0057 or greater
641
3.20 GHz
800 MHz
2 MB
0077 or greater
640
3.20 GHz
800 MHz
2 MB
0057 or greater
631
3 GHz
800 MHz
2 MB
0077 or greater
630
3 GHz
800 MHz
2 MB
0057 or greater
571
3.80 GHz
800 MHz
1 MB
0028 or greater
570J
3.80 GHz
800 MHz
1 MB
0028 or greater
561
3.60 GHz
800 MHz
1 MB
0028 or greater
560J
3.60 GHz
800 MHz
1 MB
0028 or greater
560
3.60 GHz
800 MHz
1 MB
0028 or greater
551
3.40 GHz
800 MHz
1 MB
0057 or greater
550J
3.40 GHz
800 MHz
1 MB
0028 or greater
550
3.40 GHz
800 MHz
1 MB
0028 or greater
541
3.20 GHz
800 MHz
1 MB
0057 or greater
540J
3.20 GHz
800 MHz
1 MB
0028 or greater
540
3.20 GHz
800 MHz
1 MB
0028 or greater
531
3 GHz
800 MHz
1 MB
0057 or greater
530J
3 GHz
800 MHz
1 MB
0028 or greater
530
3 GHz
800 MHz
1 MB
0028 or greater
524
3.06 GHz
533 MHz
1 MB
0077 or greater
521
2.80 GHz
800 MHz
1 MB
0057 or greater
520J
2.80 GHz
800 MHz
1 MB
0028 or greater
520
2.80 GHz
800 MHz
1 MB
0028 or greater
519K
3.06 GHz
533 MHz
1 MB
0057 or greater
519
3.06 GHz
533 MHz
1 MB
0057 or greater
517
2.93 GHz
533 MHz
1 MB
0057 or greater
516
2.93 GHz
533 MHz
1 MB
0057 or greater
515
2.93 GHz
533 MHz
1 MB
0028 or greater
511
2.80 GHz
533 MHz
1 MB
0028 or greater
506
2.66 GHz
533 MHz
1 MB
0057 or greater
505J
2.66 GHz
533 MHz
1 MB
0028 or greater
505
2.66 GHz
533 MHz
1 MB
0028 or greater
Intel Celeron D Processor
Processor Number
Processor Speed
System Bus Frequency
L2 Cache Size
BIOS Version
356
3.33 GHz
533 MHz
512 KB
0077 or greater
355
3.33 GHz
533 MHz
256 KB
0057 or greater
352
3.20 GHz
533 MHz
512 KB
0077 or greater
351
3.20 GHz
533 MHz
256 KB
0057 or greater
346
3.06 GHz
533 MHz
256 KB
0057 or greater
345J
3.06 GHz
533 MHz
256 KB
0028 or greater
341
2.93 GHz
533 MHz
256 KB
0057 or greater
340J
2.93 GHz
533 MHz
256 KB
0028 or greater
340
2.93 GHz
533 MHz
256 KB
0028 or greater
336
2.80 GHz
533 MHz
256 KB
0057 or greater
335J
2.80 GHz
533 MHz
256 KB
0028 or greater
335
2.80 GHz
533 MHz
256 KB
0028 or greater
331
2.66 GHz
533 MHz
256 KB
0057 or greater
330J
2.66 GHz
533 MHz
256 KB
0028 or greater
330
2.66 GHz
533 MHz
256 KB
0028 or greater
326
2.53 GHz
533 MHz
256 KB
0057 or greater
325J
2.53 GHz
533 MHz
256 KB
0028 or greater
325
2.53 GHz
533 MHz
256 KB
0028 or greater
320
2.40 GHz
533 MHz
256 KB
0028 or greater
