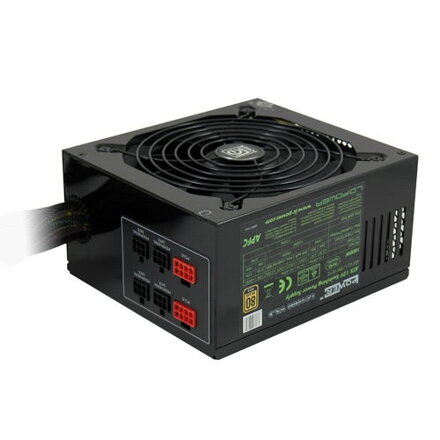

LC-Power LC1000 V2.3 Legion X2 - Metatron Gaming Series

Power supply typeMetatron SeriesATX standardATX V2.3Connectors 20+4 pin mainboard1x 55 cm4+4 pin mainboard 12V (8 pin EPS)1x 55 cm8 pin EPS mainboard 12V1x 55 cmPCI-Express3x PCI-Express 6 pin 65 cm; 3x PCI-Express 6+2 pin 55 cmSATA12 (3x 50 / 3x 65 / 3x 80 / 3x 95 cm)PATA4 (1x 50 / 1x 65 / 1x 80 / 1x 95 cm)FDD1x 110 cmMark of conformityCE / TÃVFan140 mmPFCactiveDimension h x w x d86 x 150 x 165 mmWeight (retail)3,61 kgPower rating1000Wmax. peak load1100W+3,3V24A+5V30Amax. combined150W+12V136A+12V236A+12V336A+12V436Amax. combined83A / 996WEfficiencyup to 90,69%Standby consumptionlt;0,5W - ErP 2013Security circuitryOVP = Over-Voltage ProtectionOCP = Over-Current ProtectionOPP = Over-Power ProtectionSCP = Short-Circuit ProtectionUVP = Under-Voltage ProtectionMultirange (110V/220V)yesHaswell compatibleyesWarranty3 yearsPDF:

Characteristics:1000W
80 PLUS® GOLD certified
Free-Plug - modular cable management
4 independent +12V rails
6x PCI-E (3x PCI-Express 6+2 pin; 3x PCI-Express 6 pin)
super silent 140mm fan
high gloss coated
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry (OVP, OCP, OPP, SCP, UVP)
Barcode:4260070122316
