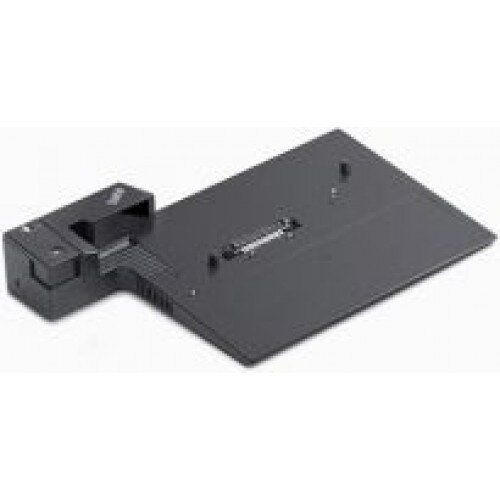

Lenovo ThinkPad Essential Port Replicator 2505, P/N 42W4622 FRU 42W4623

bez adaptéra



Features and specifications
ThinkPad Essential Port Replicator (250510W) offers:
Left corner alignment for easy system attachment
Convenient buttons for easy system ejection
Device ports:
Four USB 2.0 ports
PS/2 port for mouse
VGA analog monitor video port
Communication ports - Gigabit Ethernet (RJ-45) and modem (RJ-11)
Cable lock slot physically secures the ThinkPad notebook and ThinkPad Essential Port Replicator.
When a cable lock is inserted into the lock slot on the back of the ThinkPad Essential Port Replicator, the cable lock secures both:
ThinkPad Essential Port Replicator to the workspace (desk, wall, pole)
ThinkPad to the ThinkPad Essential Port Replicator, via an internal locking mechanism.
To remove the ThinkPad system, from the ThinkPad Essential Port Replicator, the cable lock must be removed from the Port Replicator
The cable lock slot supports attachment of Kensington Cable Locks from Lenovo.
Supports attachment of one of the following power adapters:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
90W Slim AC/DC Power Adapter (41N8460)
ThinkPad Essential Port Replicator is also available in a retail packaged version for Europe. This design is for showcasing retail setting. The retail packaged version has the following languages: English, Italian, Polish, Slovakian, Slovenian, German, Greek, Czech and French. The option marketing part number is 250510E
Notes:
The ThinkPad Port Replicator Series does not include a power adapter. Requires the power adapter provided with the system or one of the following power adapters:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
90W Slim AC/DC Power Adapter (41N8460)
The ThinkPad Port Replicator does not offer an integrated key lock using security keys. The ThinkPad Advanced Mini Dock offers integrated key lock using security keys. The ThinkPad Advanced Mini Dock includes two security keys.
Physical specifications:
Approximate height: 55 mm (2.1 in)
Approximate width: 334 mm (13.1 in)
Approximate depth: 213 mm (8.4 in)
Approximate weight: 0.85 kg (1.9 lb)
Operating environment:
Temperature: 5 degrees C (41 degrees F) to + 31 degrees C (88 degrees F)
Relative humidity: 8% to 88% (non-condensing)
Storage environment:
Temperature: - 5 degrees C (- 4 degrees F) to + 41 degrees C (110 degrees F)
Relative humidity: 8% to 95% (excluding rain)
Announce date: 20th Sep 2005 (Worldwide)
Availability date: Oct 2005 (Worldwide)
Effective withdrawal date: 31 May 2010 (Worldwide)
No replacement product available. This option may be available via the Lenovo Option Continuation Program (OCP) at: www.lenovo.com/optionscontinuationprogram
Announce date: 25 Nov 2008 (Europe/Middle East/Africa)
Planned availability date: Dec 2008 (Europe/Middle East/Africa)
Effective withdrawal date: 31 May 2010 (Europe/Middle East/Africa)
No replacement product available. This option may be available via the Lenovo Option Continuation Program (OCP) at: www.lenovo.com/optionscontinuationprogram
Hardware compatibility
Systems
Machine Type - Models
ThinkPad R60
All
ThinkPad R61, R61i 14-inch Wide
All
ThinkPad R61, R61i 15-inch Standard
All
ThinkPad R61, R61i 15.4-inch Wide
Selected Machine Types. Compatible Machine Types: 7642, 7643, 7644, 7645, 7646, 8914, 8918, 8919, 8920, 8927, 8930, 8932, 8933, 8934, 8935
ThinkPad R400
All
ThinkPad R500
All
ThinkPad T60, T60p, T61
All
ThinkPad T400
All
ThinkPad T500
All
ThinkPad W500
All
ThinkPad Z60m, Z60t
All
ThinkPad Z61m, Z61t
All
Lenovo Easy Reach Monitor Stand (55Y9258)
All
ThinkPad Adjustable Notebook Stand (40Y7676)
All
Notes:
Uses the system 90W AC Power Adapter. Supports one of the following 90W AC Power Adapters:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
90W Slim AC/DC Power Adapter (41N8460)
Not supported on ThinkPad R60e and Z61e
Not supported on ThinkPad R61e/R61i 15.4-inch wide Machine Types: 7649, 7650, and 7657
The ThinkPad Essential Port Replicator (250510W) is compatible when the Lenovo Easy Reach Monitor Stand (55Y9258) optional support pegs are removed.
The ThinkPad Essential Port Replicator (250510W) is not compatible with the following notebook stands:
Lenovo Essential Notebook Stand
Packaging
ThinkPad Essential Port Replicator
Setup poster
User's guide
Warranty manual
Note: The ThinkPad Essential Port Replicator does not include a power adapter. Requires the power adapter provided with the system or one of the following power adapters:
90W Ultraslim AC/DC Combo Adapter (41R4493)
90W AC Power Adapter (40Y7659)
90W Slim AC/DC Power Adapter (41N8460)
