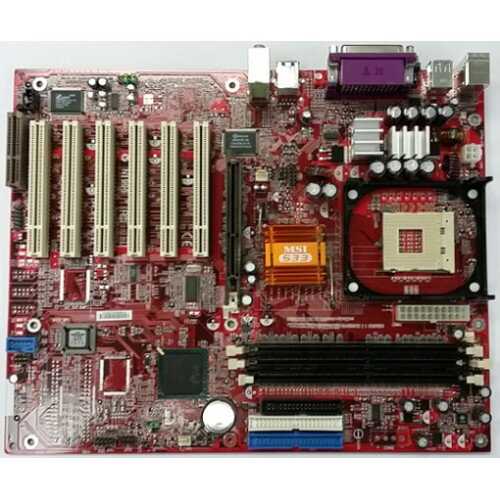

Popis
CPU
⢠Supports Socket 478 for Intel® Pentium 4 processor
⢠Supports up 3.06G/533MHz and higher speed
Chipset
⢠Intel® 845PE Chipset
- FSB 533 MHz.
- Supports DDR 266/333 DDR technology.
- 1.5 V AGP 4X and PCI advanced high performance memory controller.
⢠Intel® ICH4 (421BGA) Chipset
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 66/100 master mode IDE controller.
- ACPI amp; PC2001 compliant enhanced power management.
- Integrated USB 2.0 controller.
FSB
⢠Support 100/133MHz FSB
⢠Support 400/533MHz Intel NetBurst micro-architecture bus.
Main Memory
⢠Supports four memory banks using three 184-pin DDR DIMMs.
⢠Supports up to 2GB PC2700/PC2100 DDR DRAMs.
⢠Supports 2.5v DDR DRAM.
⢠No support ECC Function.
Note: FSB533 CPU is required in order to choose DDR333 selection in the BIOS setup.
Slots
⢠One AGP (Accelerated Graphics Port) slot.
- Supports AGP 1.5 4x.
⢠Six 32-bit Master PCI Bus slots.
⢠One CNR (Communication Network Riser) slot.
On-Board IDE
⢠Dual IDE controllers integrated in Promise 20275/20276.
⢠PIO, Bus Master and Ultra DMA66/100/133 operation modes.
Audio
⢠C-Media 8738MX 6-channel audio.
LAN
⢠Intel® 82540EM/82551/82562ET Dual layout.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s, 100Mb/s and 1000Mb/s.
- Compliance with PCI 2.2.
- Supports ACPI Power Management.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COM A)
- 1 parallel port supports SPP/EPP/ECP mode.
- 1 IrDA connector for with Intel® amp; MSI pin-definition
- 1 Line-in/Line-out/MIC port
- C-Media 8738 6 channel audio SPDIF (Optional)
- 6 USB 2.0 ports (Rear * 2/ Front * 4)
- 1 RJ-45 LAN jack (Optional)
- 1394 port controlled by VT6306 (Optional)
BIOS
⢠The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
⢠The motherboard provides a Desktop Management Interface(DMI) function which records your
motherboard specifications.
⢠Supports Multi-Language
Dimension
⢠30.5 cm(L) x 24.5 cm(W) ATX Form Factor
Mounting
⢠9 mounting holes.
⢠Supports Socket 478 for Intel® Pentium 4 processor
⢠Supports up 3.06G/533MHz and higher speed
Chipset
⢠Intel® 845PE Chipset
- FSB 533 MHz.
- Supports DDR 266/333 DDR technology.
- 1.5 V AGP 4X and PCI advanced high performance memory controller.
⢠Intel® ICH4 (421BGA) Chipset
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 66/100 master mode IDE controller.
- ACPI amp; PC2001 compliant enhanced power management.
- Integrated USB 2.0 controller.
FSB
⢠Support 100/133MHz FSB
⢠Support 400/533MHz Intel NetBurst micro-architecture bus.
Main Memory
⢠Supports four memory banks using three 184-pin DDR DIMMs.
⢠Supports up to 2GB PC2700/PC2100 DDR DRAMs.
⢠Supports 2.5v DDR DRAM.
⢠No support ECC Function.
Note: FSB533 CPU is required in order to choose DDR333 selection in the BIOS setup.
Slots
⢠One AGP (Accelerated Graphics Port) slot.
- Supports AGP 1.5 4x.
⢠Six 32-bit Master PCI Bus slots.
⢠One CNR (Communication Network Riser) slot.
On-Board IDE
⢠Dual IDE controllers integrated in Promise 20275/20276.
⢠PIO, Bus Master and Ultra DMA66/100/133 operation modes.
Audio
⢠C-Media 8738MX 6-channel audio.
LAN
⢠Intel® 82540EM/82551/82562ET Dual layout.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s, 100Mb/s and 1000Mb/s.
- Compliance with PCI 2.2.
- Supports ACPI Power Management.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COM A)
- 1 parallel port supports SPP/EPP/ECP mode.
- 1 IrDA connector for with Intel® amp; MSI pin-definition
- 1 Line-in/Line-out/MIC port
- C-Media 8738 6 channel audio SPDIF (Optional)
- 6 USB 2.0 ports (Rear * 2/ Front * 4)
- 1 RJ-45 LAN jack (Optional)
- 1394 port controlled by VT6306 (Optional)
BIOS
⢠The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
⢠The motherboard provides a Desktop Management Interface(DMI) function which records your
motherboard specifications.
⢠Supports Multi-Language
Dimension
⢠30.5 cm(L) x 24.5 cm(W) ATX Form Factor
Mounting
⢠9 mounting holes.
