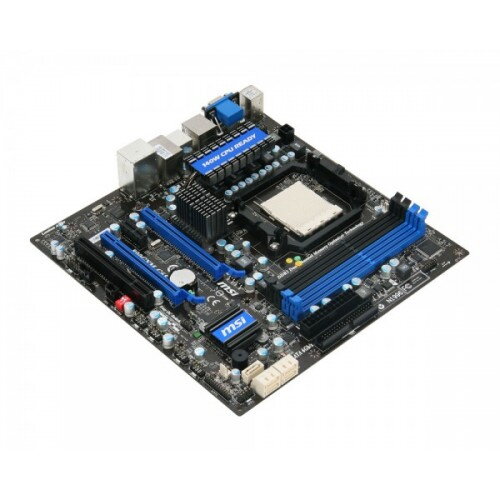

MSI 890GXM-G65

CPU

• 64bit AMD® Phenom II CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

• AMD® 890GX and SB850 Chipset

Integrated Graphic

• Integrated ATI Radeon HD4290 GPU

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC) DRAM, 32GB Max

Side Port Memory

• DDR3 DRAM 1Gbit

Slots

• PCI_E1 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
• PCI_E2 slot with x8 operation (PCI Express Bus SPEC V2.0 compliant)
- When 2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0 to x8/ x8. Do not use PCI_E2 slot when only one PCI Express x16 card is installed.
• 1 PCI Express x1 slot
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

• One IDE port by JMicron® JMB368
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• 5 SATA III (1~5) ports by AMD® SB850
• 1 eSATA III port by AMD® SB850
- Supports storage and data transfers at up to 6Gb/s

RAID Function

- SATA III 1~5 support RAID 0, 1, 5, 10 mode by AMD® SB850

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC889
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 1 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 4 x USB 2.0 connectors
- 5 x Serial ATA III connectors
- 1 x ATA133 HD connector
- 1 x Serial port connector
- 1 x Parallel port connector
- Clear CMOS jumper
- OC switch
- 1 x SPDIF-out connector
- 1 x TPM module connector

Back Panel I/O Ports
- 1 x PS/2 keyboard or mouse
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN jack
- 1 x optical SPDIF-out port
- 1 x eSATA port
- 1 x DVI-D port
- 1 x Graphic Card port
- 1 x HDMI port

MSI Reminds You...
• The HDMI and DVI-D ports can not work simultaneously.

Dimension

• 24.4cm(L) x 24.4cm(W) M-ATX Form Factor

Mounting

• 8 mounting holes.
