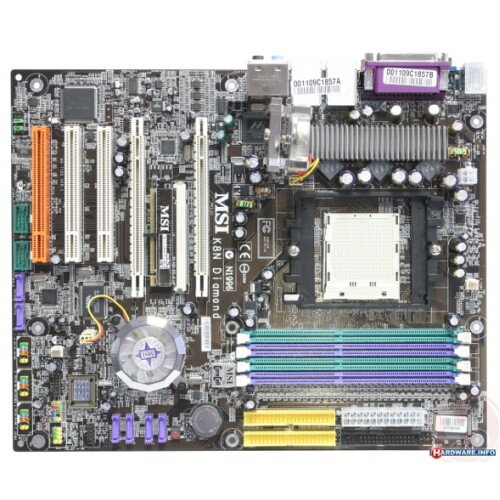

MSI K8N Diamond Socket 939 zakladna doska

CPU
• Supports 64-bit AMD® Opteron™, Athlon™ 64 X2 Dual Core, Athlon™ 64 FX, Athlon™ 64 processor (Socket 939)

• Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU
Chipset
• NVIDIA® nForce4 SLI Chipset

- HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU

- HyperTransport supporting speed up to 1GHz (2000MT/s)

- Supports 2 x PCI Express x16/x1 interface

- Two independent SATA controllers, for four drives

- Dual Fast ATA-133 IDE controllers

- IEEE 802.3 NVIDIA MAC for 1000BASE-T

MSI Reminds you...
1. NVIDIA nForce 3/4 Series board DO NOT support Windows® 98/ME.

2. SLI Technology only supports 32-bit and 64-bit Windows XP.


Main Memory



• Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs.

• Supports a maximum memory size up to 4GB.

• Supports 2.5v DDR DRAM DIMM.



Slots
• Two PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

• Two PCI Express x1 slots(by share)(support PCI Express Bus specification v1.0a compliant)

• Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE



• An IDE controller on the NVIDIA nForce4 SLI chipset provides IDE HDD/CD-ROM with PIO,

Bus Master and Ultra DMA133/100/66 operation modes.

- Can connect up to 4 IDE devices



On-Board SATA



• NV RAID supports 4 SATA II ports(SATA 1 to 4). Transfer rate is up to 300MB/s.

• Silicon image's SATA RAID supports another 2 SATA II ports. Transfer rate is up to 300MB/s.
NV RAID (Software)

• Supports up to 4 SATA + 2 ATA133 Hard drives

- RAID 0 or 1, 0+1, JBOD is supported

- RAID function available for ATA133 + SATA HD drives or 2 SATA HD



Silicon image's SATARAID™ (Software)

• RAID 0 or 1, JBOD groups and multiple RAID are supported

• Support up to 2 SATA devices connected to a single controller
MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• Creative sound Blaster Live 24-bit onboard audio

- 24-bit / 96KHz audio quality

- 100db SNR clarity

- Up to 7.1 CH Surround Sound, Dolby Digital ready



LAN
• Supports dual LAN jacks

- 1st LAN supports 10/100/1000 Fast Ethernet by nForce4 SLI

- 2nd PCI Express LAN supports 10/100/1000 Fast Ethernet by Marvell 88E8053



IEEE1394



• VIA 6306 chipset

- Supports up to three 1394 ports. (Rear panel x1, front x2)

- Transfer rate is up to 400Mbps



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 1 Audio jack(5-in-1), coaxial/fiber SPDIF out

- 1 IrDA pinheader

- 1 D-Bracket2 pinheader

- 10 USB 2.0 ports (Rear x 4 / Front x 6)

- 2 RJ45 LAN jacks

- 3 IEEE 1394 connectors (Rear x 1/ Front x 2)
MSI Reminds You...

• The floppy disk cable will be optional.


BIOS
• The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The motherboard provides a Desktop Management Interface(DMI) function which records your

motherboard specifications.



Dimension



• 30.4cm(L) x 24.4cm(W) ATX Form Factor





Mounting



• 9 mounting holes.
