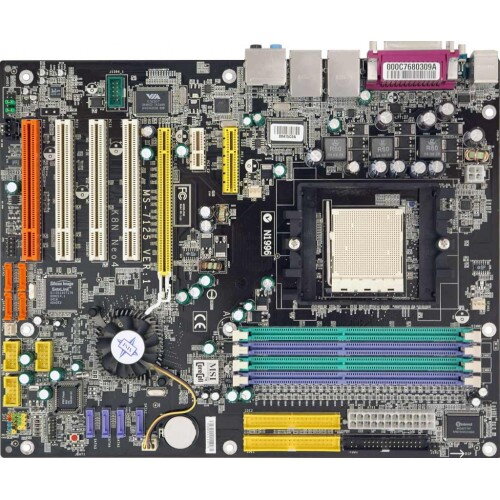

MSI K8N Neo4H VER:3 MS-7125 socket 939 zakladna doska

CPU

• Supports 64-bit AMD® Opteron™, Athlon™ 64 X2 Dual Core, Athlon™ 64 FX, Athlon™ 64 processor (Socket 939)

• Supports up to 3500+, 3800+, Athlon 64 FX 53(55), or higher CPU

Chipset

• NVIDIA® nForce4 Chipset

- HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU

- HyperTransport supporting speed up to 1GHz (2000MT/s)

- Supports PCI Express x16/x1 interface

- Two independent SATA controllers, for four drives

- Dual Fast ATA-133 IDE controllers

- IEEE 802.3 NVIDIA MAC for 1000BASE-T
Main Memory
• Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs.

• Supports a maximum memory size up to 4GB without ECC.

• Supports 2.5v DDR DRAM DIMM.
Slots

• One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

• One PCI Express x4 slots (support PCI Express x2 only)

• One PCI Express x1 slots (support PCI Express Bus specification v1.0a compliant)

• Four 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
• An IDE controller on the NVIDIA nForce4 chipset provides IDE HDD/CD-ROM with PIO,

Bus Master and Ultra DMA133/100/66 operation modes.

- Can connect up to 4 IDE devices
On-Board SATA
• NV RAID supports 4 SATA ports.

- Transfer rate is up to 150MB/s.
NV RAID (Software)

• Supports up to 4 SATA and 4 ATA133 Hard drives

- RAID 0 or 1, 0+1, JBOD is supported

- RAID function available for ATA133+SATA H/D drives

MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio

• 7.1 channel audio codec RealTek ALC850.

- Compliance with AC97 v2.3 Spec.

- Meet PC2001 audio performance requirement.
LAN

• Supports Gigabit LAN

- Supports 10/100/1000 Fast Ethernet by Marvell 88E1111 PHY
Internal I/O Connectors

- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- CPU / System x 2 / NB FAN connectors

- CD-in connector

- Clear CMOS jumper

- Chassis intrusion switch connector

- 1 x IrDA infrared module header

- 1 x MSI D-Bracket 2 Connector

- Front panel audio connector

- Front panel connector

- 3 x USB 2.0 connector support additional 6 ports

- 1 x Floppy disk drive connector

- 4 x serial ATA connectors

- 2 x ATA133 HD connectors

MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports

- 1 x Parallel

- 1 x Serial port (COM 1)

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Coaxial SPDIF out

- 1 x 6 in 1 Audio jack (S/SPDIF out)

- 4 x USB 2.0

- 1 x RJ45 LAN Jack
BIOS

• The motherboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The motherboard provides a Desktop Management Interface(DMI) function which records your

motherboard specifications.

• Supports boot from LAN, USB Device 1.1 amp; 2.0, and SATA HDD.
Dimension

• 30.4cm(L) x 24.4cm(W) ATX Form Factor

Mounting

• 9 mounting holes.
