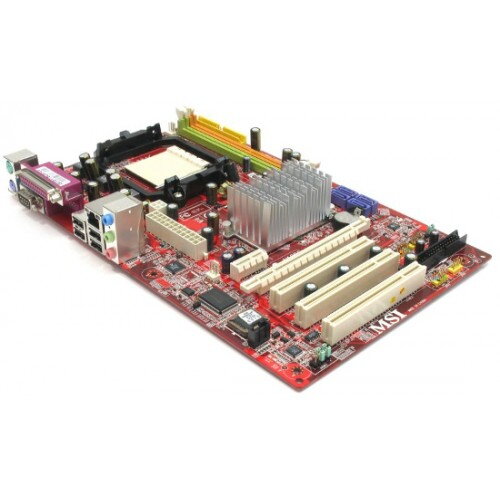

MSI K9N4 Ultra-F AM2 NVIDIA nForce 500 Ultra ATX AMD Motherboard, základná doska

CPU
• AMD® Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package.

Please refer to CPU Support for compatible CPU; the above description is for reference only.



FSB
• HyperTransport supporting speed up to 1GHz (2000MT/s)
Chipset
• NVIDIA® nForce 500 Ultra Chipset



Main Memory



• Supports Dual DDR2 400/533/667/800

- 2 DDR2 DIMMs (240pin / 1.8V)

- Supports a maximum memory size up to 4GB.



Slots
• 1 PCI Express x16 slot

• 1 PCI Express x1 slots

• 3 PCI slots, support 3.3V/ 5V PCI bus Interface.



On-Board IDE



• One IDE port by NVIDIA® nForce 500 Ultra

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices



On-Board SATA



• 4 SATA II ports by NVIDIA® nForce 500 Ultra

- Supports storage and data transfers at up to 3Gb/s



RAID Function



- SATA II 1~4 supports RAID 0/1 or 0+1 mode by NVIDIA® nForce 500 Ultra
MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• Chipset integrated by Realtek® ALC655

- Compliant with AC97 v2.3 Spec



LAN



• Supports 10/100/1000 Fast Ethernet by Vitesse VSC8601



Internal I/O Connectors
- ATX 24-pin power connector

- ATX 4-pin 12V CPU power connector

- CPU / System FAN connectors

- CD-in connector

- Clear CMOS Jumper

- SPDIF-out connector for HDMI

- Chassis intrusion switch connector

- Front panel audio connector

- 2 x Front panel connectors

- 2 x USB 2.0 connector support additional 4 ports

- 1 x Floppy disk drive connector

- 4 x Serial ATA II connectors

- 1 x ATA133 connectors
MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel port

- 1 x Serial port (COM 1)

- 1 x PS/2 keyboard

- 1 x PS/2 mouse

- 1 x 3 in 1 audio jack

- 4 x USB 2.0 ports

- 1 x RJ45 LAN jack



Dimension
• 30.4cm(L) x 18.5cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
