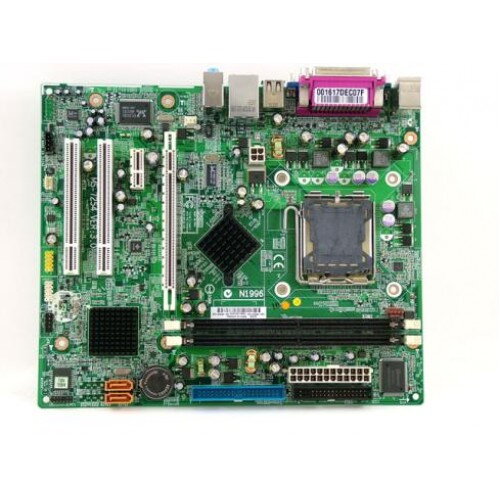

MSI MS-7254 for HP Compaq dx2200 motherboard

MSI MS-7254 Motherboard Specifications.
CPU
Socket LGA775 – Support Processor Type:
Intel Pentium 4, Pentium D Dual Core.
CPU Support List
Chipset
ATI Radeon Xpress 200
Integrated Graphics
ATI Radeon X300
Memory
2 x 240-pin DDR2 DIMM slots Supports
DDR2 677 MHz non-ECC, un-buffered memory (Max 2GB)
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage
2 x SATA 1.5Gb/s connectors
Audio
Realtek ALC861 – High Definition
LAN
Realtek RTL8100C - 10/100Mb/s
USB
Total 8
Special Features
* CPU Smart Fan Function
* System Fan Fail Check
Rear Panel
4 x USB 2.0 Ports

1 x VGA Port

1 x RJ-45 LAN Port
1 x Audio I/O

1 x Serial Port
1 x Parallel Port
1 x PS/2 green color for mouse

1 x PS/2 purple color for keyboard
Internal
1 x 4-pin CPU Fan connector

1 x 3-pin Chassis System Fan connectors

1 x 4-pin ATX 12V Power connector

1 x 24-pin ATX Power connector

1 x Front Audio header

1 x Front Panel header

2 x USB headers
1 x Battery socket (3V)

1 x Clear CMOS jumper
1 x Floppy Connector
1 x IDE Connector
BIOS
Form Factor
Micro-ATX
MS-7254 (ver 3.0) Motherboard Supports: Win 7, XP, Vista
