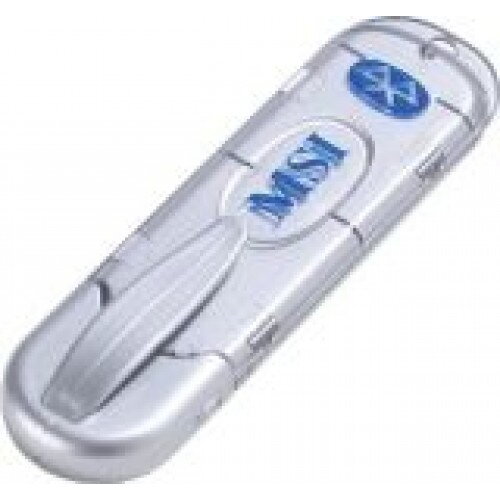

MSI PC2PC Bluetooth (MS-6967)

H/W Interface
USB 1.1
Standard Compliance
Bluetooth v1.1
Throughput
About 723Kbps (data channels)
Operating Volt.
5V from USB interface
Operating Range
100M
Regulatory Approval
FCC, CE, BSMI, VCCI, C-Tick, DGT, BCIQ
Temperature
Storage temp: -20°C~+70°C

Operating temp: 0°C~+65°C
Dimension
94 x 26 x 14 mm
Weight
19 g
Radio
Spread Spectrum
Frequency Hopping Spread Spectrum (FHSS)

Compliant with FCC part 15
Frequency Range
2.4 ~ 2.4835GHz (2.4GHz ISM Band)
RF Channels
79-channel system for USA, Japan, and Europe

(except France, 23-channel system for France)
Modulation
GFSK, BT=0.5
Output Power Class
Bluetooth Power Class 1
Output Power
+18dBm (Max.)
Receiver Sensitivity
-90dBm with BER lt; 0.1%
Max Input Level
-20dBm
Power Control
Yes
Base Band
Physical Links
Support ACL link
Network Capabilities
Support piconet point-to-point and point-to-multipoint

connections
Link Manager
3-slot Packets
Yes
5-slot Packets
Yes
Slot Offset
Yes
Timing Accuracy
Yes
Switch
Yes
Hold Mode
Yes
Sniff Mode
Yes
Test Mode
Yes
Park Mode
Yes
RSSI
Yes
Power Control
Yes
Authentication
Yes
Encryption
Yes
Operation System
System Support
Windows® 2000/ME/98/XP
Profile
GAP
Yes(Generic Access Profile)
SDAP
Yes(Service Discovery Profile)
SPP
Yes(Serial Port Profile)
HSP
Yes (Headset Profile, including Audio Gateway(AG) and Headset (HS) )
DUN
Yes(Dial-Up Networking Profile)
FAX
Yes(Fax Profile)
LAN
Yes (LAN Access Profile)
OPP
Yes (Object Push Profile)
FTP
Yes (File Transfer Profile)
SYP
Yes (Synchronization Profile)
PAN
Yes (Personal Area Network Profile)
HID
Yes ( Human Interface Device Profile)
GOEP
Yes (Generic Object Exchange Profile)
HCRP
Yes (Hard Copy Cable Replacement Profile) , since BTW driver version 1.4
