Popis

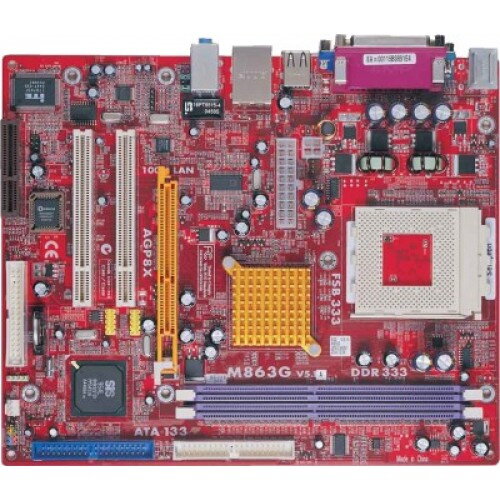

CPU Socket A for AMD Athlon XP / Sempron processor FSB 333/266 MHz Chipset SiS 741GX/964L VGA Embedded Real256E 3D Graphics with 64M share memory Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266) Maximum: 2GB Expansion Slots 1 x AGP 8X 2 x PCI slots Audio C-Media CMI9738 4-channel audio Codec Compliant with AC97 2.2 specification IDE 2 x UltraDMA 133/100/66 FDD 360K~2.88M Byte, 3 Mode FDDs or LS120 Back Panel I/O Ports 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Parallel Port 1 x Serial Port 1 x VGA port 4 x USB 2.0 Ports 1 x RJ 45 Port 1 x Audio I/O (Line-in, Line-out and Mic-in) Internal I/O Connectors amp; Headers 20-pin ATX power supply connector 4-pin ATX 12V power supply connector 2 x USB 2.0 header support additional 4 USB2.0 ports 1 x Front panel switch/LED header 1 x Front panel audio header CPU / SYS FAN headers 1 x IrDA for SIR header 1 x Speaker header 1 x CD in header System BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Form Factor Micro-ATX Form Factor, 244*200mm
