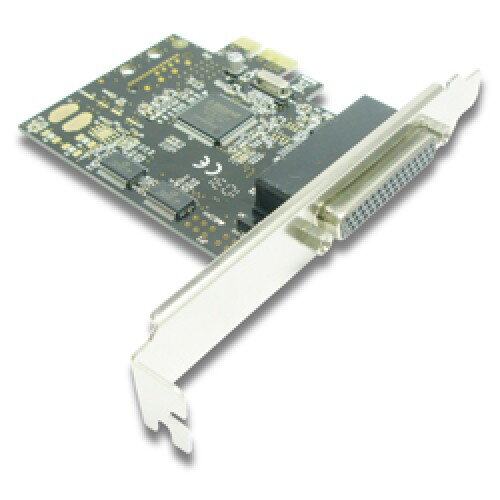

IntroductionThis PCI-Express I/O card uses the latest PCI-Express interface standard for expansion bus, enabling this card to be installed on to any computer with PCI-Express slot. Some of the latest mainboards in the market today no longer come with serial or parallel port. By using this card, end user can add serial and parallel ports to their computer, allowing them to connect their serial and parallel devices. The PCI-Express I/O card offers superior performance and unmatched data transfer rates. It is also ideal for industrial automation applications.Features amp; SpecificationGeneral Fully compliant with PCI-Express Base Specification Revision 1.1 Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps Supports Re-map function for legacy ports Supports DOS, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux amp; Mac OS/X 10.5 operating systemSerial Port (RS232) interface Compatible with industrial standard 16C450/16C550 UART On chip 256-byte depth FIFO in transmit, receive path of each port Transfer data rates up to 250Kbps on each port (special version can support up to 1Mbps) Supports hardware and software flow control Supports 5-, 6-, 7-, 8- bit serial format Supports even, odd, none, space amp; mark parity Supports 1 or 2 Stop bit operationParallel Port Interface IEEE1284 compatible parallel port Supports SPP, PS2, EPP amp; ECP modeRemarks
Low profile version is available Replacement for SD-EMIO-V2T-02S1P model seriesPackage Contents
PCI-Express I/O card x 1 User manual x 1 Fan-Out Cable Software Driver CD x 1Model Part NumberChipsetEMT02AMoschip
