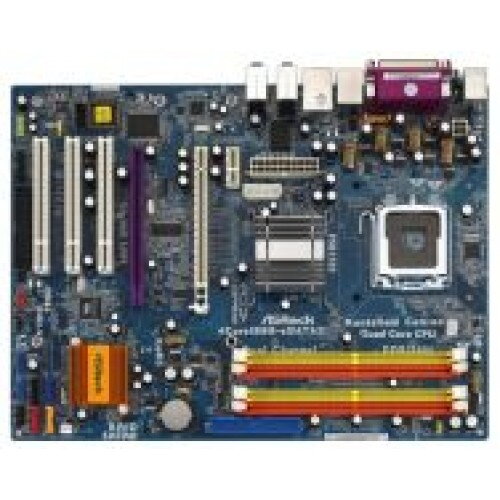

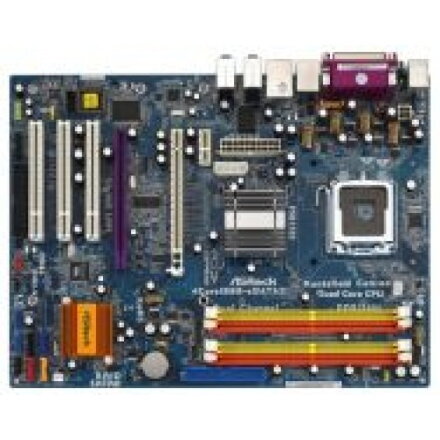

ASRock 4Core1333-eSATA2 R5.0 LGA775 Intel P31

LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core Yorkfield and Dual Core Wolfdale processors

Intel® P31/G31 + ICH7R Chipsets

Compatible with all FSB1333/1066/800MHz CPUs

Supports Dual Channel DDRII800/667 x 4 DIMM slots, with max. capacity up to 4GB

Supports ATI™ CrossFire™

1 x PCI Express x16 slot

Additional AGI Express slot to adopt 2nd PCI Express x16 VGA card, and other PCI Express x4, x2, x1 interface cards

Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses

Hybrid Booster - Safe Overclocking Technology

Supports PCIE Gigabit LAN 10/100/1000 Mb/s

Supports 2 x IEEE1394 ports (one port on back panel, one header on board)

4 x Serial ATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ and AHCI functions

1 x eSerial ATAII 3.0 Gb/s (shared with 1 SATAII port)

HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.

7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

Windows® Vista™ Premium 2007 Logo Ready

ASRock 1394_eSATAII I/O Plus: 1 eSATAII port, 1 x IEEE 1394 port, 4 ready-to-use USB ports

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.







General

CPU - LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core Yorkfield and Dual Core Wolfdale processors

- Compatible with all FSB1333/1066/800MHz CPUs

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

Chipset - Northbridge: Intel® P31/G31

- Southbridge: Intel® ICH7R

Memory - Dual Channel DDRII memory technology

- 4 x DDRII DIMM slots

- Supports DDRII800/667 non-ECC, un-buffered memory

- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.



BIOS - 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Audio, Video and Networking

Graphics - n/a

Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B / RTL8111C

- Supports Wake-On-LAN

Expansion / Connectivity

Slots - Supports ATI™ CrossFire™

- 1 x PCI Express x16 slot

- 1 x AGI Express slot (PCI Express x4)

- 1 x PCI Express x1 slot

- 3 x PCI slots

Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ and AHCI functions

- 1 x eSATAII 3.0 Gb/s connector (shared with 1 SATAII port)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1x Game port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- SLI/XFire power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O ASRock 1394_eSATAII I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATAII Port

- 1 x RJ-45 LAN Port

- 1 x IEEE 1394 Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Hybrid Booster - CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories - Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 100 cables

- 2 x SATA data cables (optional)

- 1 x SATA 1 to 1 power cable (optional)

- 1 x HDMI_SPDIF cable (optional)

Hardware Monitor - CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications - FCC, CE, WHQL
