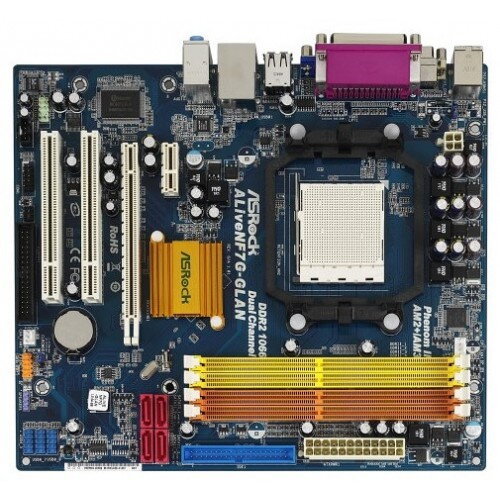

ASRock ALiveNF7G-GLAN

Product Specifications GeneralCPU- Support up to 95W Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor- Support up to 95W Socket AM3 processors*: AMD Phenom™ II X4 / X3 and Athlon II X4 / X3 / X2 processors- AMD LIVE!™ Ready- Supports AMD's Cool 'n' Quiet Technology- FSB 1000 MHz (2.0 GT/s)- Supports Untied Overclocking Technology- Supports Hyper-Transport Technology
*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
**For more information, please refer to the "CPU Support List".Chipset- NVIDIA® GeForce 7050 / nForce 630A MCPMemory- Dual Channel DDR2 memory technology- 4 x DDR2 DIMM slots- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory- Max. capacity of system memory: 16GB**
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.BIOS- 4Mb AMI BIOS- AMI Legal BIOS- Supports "Plug and Play"- ACPI 1.1 Compliance Wake Up Events- Supports jumperfree- SMBIOS 2.3.1 Support- Supports Smart BIOS Audio, Video and NetworkingGraphics- Integrated NVIDIA® GeForce7 Series (NV44)- DX9.0 VGA, Pixel Shader 3.0- Max. shared memory 256MB- Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers- Supports DVI with max. resolution up to 1920x1200 @ 75Hz- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz- Supports HDCP function with DVI-D port- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port- NVIDIA® PureVideo™ ReadyAudio- 5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 Audio Codec)- Chipset embedded HDMI AudioLAN- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Realtek RTL8211CL- Supports Wake-On-LAN- Supports PXE Expansion / ConnectivitySlots- 1 x PCI Express x16 slot- 1 x PCI Express x1 slot- 2 x PCI slotsConnector- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions- 1 x ATA133 IDE connector (supports 2 x IDE devices)- 1 x Floppy connector- 1 x IR header- 1 x COM Port header- CPU/Chassis FAN connector- 24 pin ATX power connector- 4 pin 12V power connector- CD in header- Front panel audio connector- 3 x USB 2.0 headers (support 6 USB 2.0 ports)Rear Panel I/OASRock 6CH_DVI I/O- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x VGA/D-Sub Port- 1 x VGA/DVI-D Port- 1 x Parallel Port (ECP/EPP support)- 4 x Ready-to-Use USB 2.0 Ports- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jack: Line in / Front Speaker / Microphone Other Features / MiscellaneousUnique Feature- ASRock OC Tuner- Intelligent Energy Saver- Instant Boot- Hybrid Booster:- CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%Support CD- Drivers, Utilities, AntiVirus Software (Trial Version)Accessories- Quick Installation Guide, Support CD, I/O Shield- ATA 133 Cable- 1 x SATA Data Cable - 1 x SATA 1 to 1 Power CableHardware Monitor- CPU Temperature Sensing- Chassis Temperature Sensing- CPU Fan Tachometer- Chassis Fan Tachometer- CPU Quiet Fan- Voltage Monitoring: +12V, +5V, +3.3V, VcoreForm Factor- Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cmOS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliantCertifications- FCC, CE, WHQL
