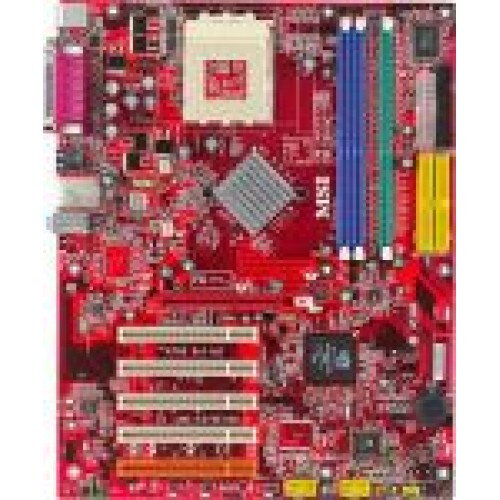

MSI K7N2 Delta2 (MS-6570E) Ver:10C socket A / 462 zakladna doska

Specifications


CPU
• Supports Socket A for AMD® Athlon™/Athlon™ XP/Duron™/Sempron™ processors

@FSB 266/333/400MHz

• Supports up to 3200+ processor or higher

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
• NVIDIA® nForce2 400 Ultra Chipset

- Supports DDR200/266/333/400

- AGP 8X and PCI Advanced high performance memory controller
• NVIDIA® nForce2 RAID MCP Chipset

- Integrated Ethernet MAC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- Supports USB 2.0

- Integrated SATA Interface




Main Memory
• Supports six memory banks using three 184-pin DDR DIMMs

• Support Dual channel PC3200/2700/2100/1600 DDR SDRAMs

• Supports both 64-bit and 128-bit DDR SDRAM

• Maximum memory size of 3GB

• Supports 2.5v DDR SDRAM DIMM




Slots
• One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot

• Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)




On-Board IDE
• Two IDE controller on the NVIDIA® nForce2 RAID MCP chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes

• Can connect up to four IDE devices


SATA Interface

• Integrated SATA Phy, supporting up to 2 ports

• One SATA controller, supporting two drives in master mode


NV RAID (Software)

• Supports 2 serial ATA plus 1 ATA 133

- RAID 0, or 1, 0+1, JBOD is supported

- Booting from RAID

- Cross controller RAID support

- Rebuilding on the Fly

- Spare Disk Allocation

• Supports Windows 2000 and later versions




Audio
• Chip integrated (5.1 channel H/W audio)

- Direct Sound AC97 audio

- 6 channel analog output




Network
• On-Board 10/100 Ethernet

- A 802.3 NVIDIA MAC for 100 BASE-T/10 BASE-T Fast Ethernet/Ethernet

- MII for Fast Ethernet/Ethernet




USB Interface
• 8 USB ports

- Controlled by RAID MCP southbridge

- 4 ports in the rear I/O, 4 ports via external bracket




On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port that supports one FDD with 360KB, 720KB, 1.44MB and 2.88MB

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 3 audio ports in vertical

- 8 USB ports (Rear x 4 / Front x 4)

- 1 RJ-45 jack

- 1 D-Bracket2 pinheader




BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices

and expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications.




Dimension
• 30.4 cm(L) x 24 cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
