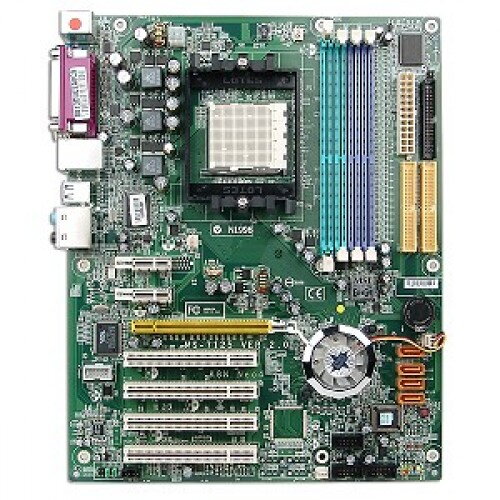

MSI K8N Neo4-F 939 NVIDIA nForce4 ATX AMD Motherboard MS-7125 VER: 2.0

Model
Brand
MSI
Model
K8N Neo4-F
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 FX / Athlon 64
FSB
1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge
NVIDIA nForce4
Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1
PCI Express x1
1
PCI Slots
4
Storage Devices
PATA
2 x ATA100 4 Dev. Max
PATA RAID
NV RAID 0/1/0+1 JBOD
SATA 1.5 Gb/s
4
SATA RAID
NV RAID 0/1/0+1 JBOD
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC850
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Marvell 88E1111 PHY
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
5 Ports
Onboard USB
Onboard USB
3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
