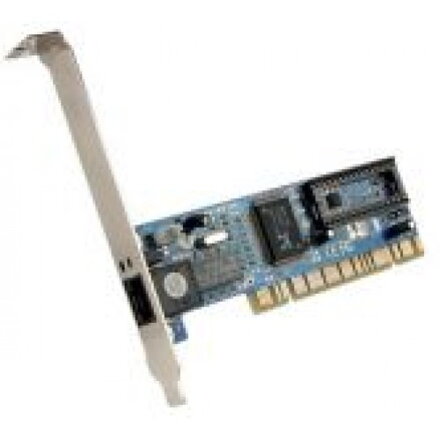

Realtek RTL8139D(L) 10/100 LAN PCI

100-pin PQFP/LQFP

Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip

10 Mb/s and 100 Mb/s operation

Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation

Supports PCI multi-function capabilities

PCI local bus single-chip Fast Ethernet controller

Compliant to PCI Revision 2.2

Supports PCI clock 16.75MHz-40MHz

Supports PCI target fast back-to-back transaction

Provides PCI bus master data transfers and PCI memory space or I/O space mapped data transfers of RTL8139D(L)'s operational registers

Supports PCI VPD (Vital Product Data)

Supports ACPI, PCI power management

Supports PCI multi-function to incorporate with other PCI master device

Supports 25MHz crystal or 25MHz OSC as the internal clock source. The frequency deviation of either crystal or OSC must be within 50 PPM.

Compliant to PC99 and PC2001 standards

Supports Wake-On-LAN function and remote wake-up (Magic Packet*, LinkChg and Microsoft® wake-up frame)

Supports 4 Wake-On-LAN (WOL) signals (active high, active low, positive pulse, and negative pulse)

Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power remains off

Supports auxiliary power auto-detect, and sets the related capability of power management registers in PCI configuration space

Includes a programmable, PCI burst size and early Tx/Rx threshold

Supports a 32-bit general-purpose timer with the external PCI clock as clock source, to generate timer-interrupt

Contains two large (2Kbyte) independent receive and transmit FIFO's

Advanced power saving mode when LAN function or wakeup function is not used

Uses 93C46 (64*16-bit EEPROM) to store resource configuration, ID parameter, and VPD data

Supports LED pins for various network activity indications

Supports loopback capability

Half/Full duplex capability

Supports Full Duplex Flow Control (IEEE 802.3x)

3.3V power supply with 5V I/O tolerance

Provides up to 128K-byte Boot ROM and PCI share interface for both EPROM and Flash Memory

0.25u CMOS process
