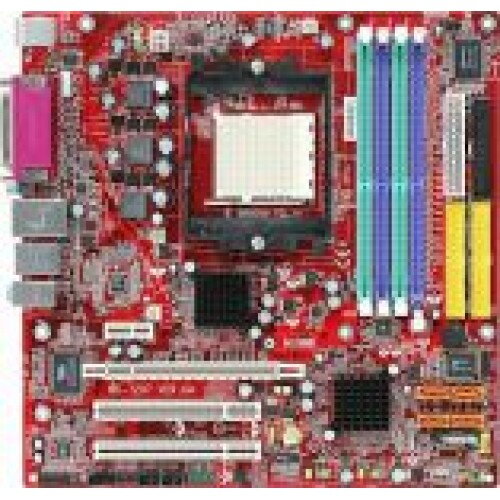

MSI K8NGM2 Socket 939 zakladna doska

CPU
• Supports 64-bit AMD® Opteron™, Athlon™ 64 X2 Dual Core, Athlon™ 64 FX, Athlon™ 64 processor (Socket 939)

• Supports up to 4800+ or higher CPU

• Supports AMD® Cool'n'Quiet technology
Chipset
• NVIDIA® GeForce 6150/6100 Chipset

- HyperTransport™ connection to AMD K8 Athlon64 processor

- 8 or 16 bit control/address/data transfer both directions

- 1GHz "Double Data Rate" operation both direction

- Supports one PCI-E x16 slot

- Integrated GeForce 6 GPU



• NVIDIA® nForce 430/410 Chipset

- nForce 430 supports dual channel native SATA II controller up to 300MB/s

- nForce 410 supports single channel native SATA II controller up to 300MB/s

- nForce 430 supports RAID 0, 1, 0+1, 5

- nForce 410 supports RAID 0, 1

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI amp; PC2001 compliant enhanced power management

- Supports USB2.0 up to 8 ports

- Supports HD audio



Main Memory



• Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs .

• Supports a maximum memory size up to 4GB without ECC.

• Supports 2.5v DDR DRAM DIMM.



Slots
• One PCI Express x 16 slots.

• One PCI Express x 1 slots.

• Two 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE/SATA



• An IDE controller on the NVIDIA® nForce 430/410 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.

- Can connect up to 4 IDE devices



• nForce 430 supports 4 SATA II ports

• nForce 410 supports 2 SATA II ports

- Transfer rate is up to 300MB/s.

- nForce 410 supports RAID 0, 1

- nForce 430 supports RAID 0, 1, 0+1, 5
MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• 8 channel HD audio codec RealTek ALC880.

- High Definition link controller integrated in NVIDIA® nForce 430/410.



LAN
• VITESSE VSC8201RX/ Realtek 8201CL.

- Compliant with PCI v2.2.

- Supports ACPI Power Management.

- Supports 10Mb/s, 100Mb/s or 1000Mb/s (for VSC8201RX only)
VITESSE VSC8201RX only available on K8NGM2-FID

Realtek 8201CL only available on K8NGM2-IL, K8NGM2-L


IEEE1394



• VIA® 6307 chipset

- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)

- Transfer rate is up to 400Mbps
IEEE1394 only available on K8NGM2-FID, K8NGM2-IL


Internal I/O Connectors
- ATX 24-pin power connector

- 4-pin ATX 12V power connector

- CPU / System / NB FAN connectors

- CD-in connector

- Audio-out connector

- Serial port header

- TV-out connector (optional)

- SPDIF-Out / SPDIF-in connector (optional)

- Front panel audio connector

- Front panel connector

- 2 x USB 2.0 connector support additional 4 ports

- 1 x IEEE1394 connector support additional 1 port (optional)

- 1 x Floppy disk drive connector

- 4 x Serial ATA connectors (nForce 430) ; 2 x Serial ATA connectors (nForce 410)

- 2 x ATA133 HD connectors

- Chassis intrusion switch connector

- Clear CMOS button
MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x VGA

- 1 x DVI port (optional)

- 1 x IEEE1394 port (optional)

- 1 x Audio I/O (Line-in/Line-out/MIC)

- 4 x USB 2.0

- 1 x RJ45 LAN Jack



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 24.4cm(L) x 24.4cm(W) Micro-ATX Form Factor
Mounting
• 8 mounting holes.
