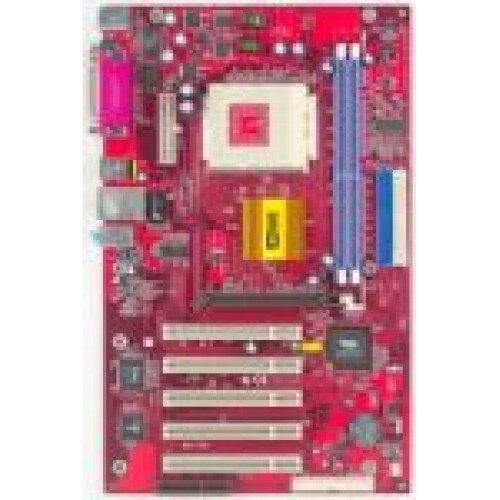

PCCHIPS M811LU (V3.1) Socket A/462 základná doska

CPU Socket A for AMD K7 CPU







FSB 266/200MHz







Chipset KT266A/8235







Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR266/200)

Maximum: 2GB







Expansion Slots 1 x AGP 4X

5 x PCI

1 x CNR slot







LAN VIA VT6103 10/100Mbps Fast Ethernet PHY







Audio VIA VT1612A 2-channel audio Codec

Compliant with AC97 2.2 specification







IDE 2 x UltraDMA 133/100







Back Panel I/O Ports 1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)







Internal I/O Connectors amp; Headers 20-pin ATX power supply connector

1 x Floppy connector-support 360K~2.88MB FDDs

1 x Speaker header

1 x USB card reader header

1 x USB header support additional 2 USB2.0 ports

1 x Front panel switch/LED header

1 x CD in header

CPU / CAS FAN headers

1 x Front panel audio header







System BIOS AMI 2Mb Flash EEPROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification







Form Factor ATX Form Factor, 305*190mm
