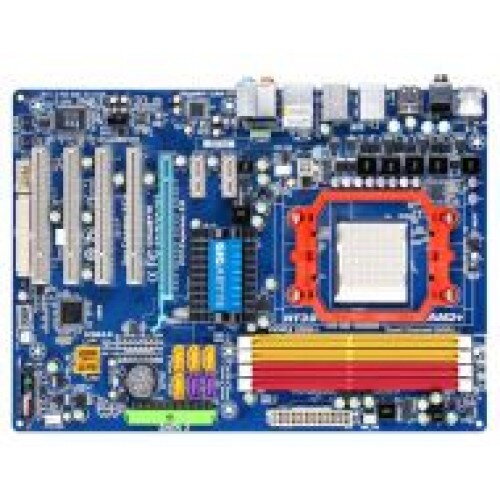

GA-M720-US3 (rev. 1.0) Socket AM3 / AM2+ / AM2 základná doska

CPU
Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor
Hyper Transport Bus
5200/2000 MT/s
Chipset
NVIDIA® nForce 720D chipset
Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1200 (Note 2)/1066/800/667 MHz memory modules
Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Support for CD In
LAN
Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIE_16) (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
4 x PCI slots
Storage Interface
NVIDIA® nForce 720D chipset:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5 RAID 10 and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394
T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)
USB
Integrated in the NVIDIA® nForce 720D chipset
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x serial port header
1 x power LED header
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x IEEE 1394a ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 3)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 4)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Support for Easy Energy Saver (Note 5)
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft Windows Vista/XP
Form Factor
ATX Form Factor; 30.5cm x 21.5cm
Note
(Note 1) Due to Windows XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) Whether 1066 MHz memory speed is supported depends on the CPU being used.

(Note 3) Whether the CPU/ system fan speed control function is supported will depend on the CPU/ system cooler you installed.

(Note 4) Available functions in Easytune may differ by motherboard model.

(Note 5) Due to the hardware limitation, you must install the AMD AM2+ Phenom™ series CPU to enable support for Easy Energy Saver.
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors no longer offer support for Win9X/ME. If drivers are available from the vendors, we will update them on the GIGABYTE website.
