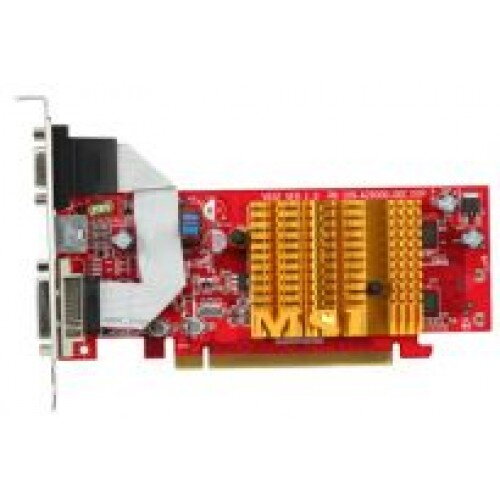

MSI RX1050-TD128E 128mb agp

On-board Memory



128MB GDDR2 memory



On-board Function



TV-out (S-Video connector)

DVI ConnectorRADEON™ X1050 Chipset Features and Specifications



HyperMemory Support for ATI IGP ASICs ( for WinXP and Vista)

HyperMemory is ATI's latest technology for utilizing and managing system memory

extension to the UMA memory or side-port memory (where supported). This feature allows customers to utilize system memory more efficiently and get better performance at lower cost. Graphics Card Memory enhanced by HyperMemory Technology (for reference only). Below table is only for WinXP.
On-board Graphic Memory
System Memory
64MB
128MB
256MB
256MB
128MB
256MB
512MB
256MB
256MB
512MB
1GB
512MB
512MB
512MB
SMARTSHADER™ 2.0

• SMARTSHADER™ defines the level of realism in latest 2D/3D games and applications

• Complete hardware-accelerated Microsoft® DirectX® 9.0 programmable vertex and pixel

shader support

• Full hardware support for OpenGL® 2.0



SMOOTHVISION™ 2.1

• SMOOTHVISION™ settings are user configurable in ATI CATALYST™ Control Panel:

• 2x/4x/6x Anti-Aliasing (AA) modes

- Sparse multi-sample algorithm with gamma correction, programmable sample patterns and

entroid sampling

- Loss-less Color Compression (up to 6:1) at all resolutions

• 2x/4x/8x/16x Anisotropic Filtering (AF) modes

- Up to 128-tap texture filtering

- Adaptive algorithm with bilinear (performance) and trilinear (quality) options.



HYPER Z™ III

• HYPER Z™ ensures optimal hardware performance bydiscarding irrelevant object data that

is not visible to end-user on their display.

• Leverages key features from ATi's third generation HYPER Z™ III technology that

conserves video memory bandwidth for improved performance in demanding 2D/3D

games and applications

• Lossless Z-Buffer Compression (up to 48:1)

• Fast Z-Buffer Clear

• Z Cache optimized for real-time shadow rendering



VIDEOSHADER™

• Seamless integration of pixel shaders with video in real time

• FULLSTREAM™ video de-blocking technology for Real, DivX, and WMV9 formats

• VIDEOSOAP™ noise removal filtering for captured video

• MPEG 1/2/4 decode and encode acceleration

• DXVA Support

• Hardware Motion Compensation, iDCT, DCT and color space conversion

• Adaptive Per-Pixel De-Interlacing and Frame Rate Conversion (temporal filtering)



ADDITIONAL FEATURES

• Dual integrated display controllers

• Dual integrated 10 bit per channel 400 MAz DACs

• Integrated 165 MHz TMDS transmitter (DVI 1.0 / HDMI compliant and HDCP ready)

• Windows® Logo Program compliant

• 128-bit memory interface supporting 256MB DDR2 memory configurations

• Native x16 lane PCI Express



PERFORMANCES

• Engine Clock Speed: 400MHz

• Memory interface: 64-bit

• Memory Clock Speed: 666MHz

• Pixel Pipelines: 4
