Popis

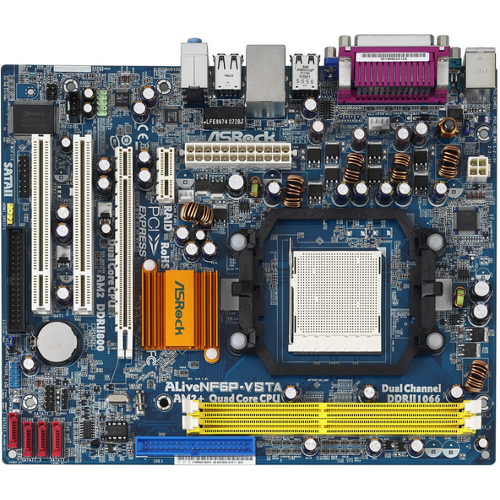

Support for Socket AM2+ / AM2 processors: AMD Phenom⢠FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processorNVIDIA® GeForce 6150SE / nForce 430 ChipsetsAMD LIVE!⢠ReadySupports Dual Channel DDR2 1066/800/667/533 (2 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 8GBASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%Integrated NVIDIA® GeForce6-class graphics DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB1 x PCI Express x16 slotHybrid Booster - ASRock Safe Overclocking TechnologyUntied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses4 x SATA2 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions10/100 Ethernet LANHDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.High Definition AudioASRock 6CH I/O Plus: 6 ready-to-use USB PortsThis model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
Product Specifications GeneralCPU- Support for Socket AM2+* / AM2 processors: AMD Phenom⢠FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor- AMD LIVE!⢠Ready- Supports AMD's Cool 'n' Quiet Technology- FSB 1000 MHz (2.0 GT/s)- Supports Untied Overclocking Technology- Supports Hyper-Transport Technology
*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.Chipset- NVIDIA® GeForce 6150SE / nForce 430Memory- Dual Channel DDR2 memory technology- 2 x DDR2 DIMM slots- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory- Max. capacity of system memory: 8GB**
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vistaâ¢. For Windows® XP 64-bit and Windows® Vista⢠64-bit with 64-bit CPU, there is no such limitation.BIOS- 4Mb AMI BIOS- AMI Legal BIOS- Supports "Plug and Play"- ACPI 1.1 Compliance Wake Up Events- Supports Jumperfree- SMBIOS 2.3.1 Support Audio, Video and NetworkingGraphics- Integrated NVIDIA® GeForce6-class graphics- DX9.0 VGA, Pixel Shader 3.0- Max. shared memory 256MB- Supports D-Sub with max. resolution up to 1920x1440 @ 60HzAudio- 5.1 CH Windows® Vista⢠Premium Level HD Audio (Realtek ALC662 Audio Codec)LAN- Realtek PHY RTL8201CL- Speed: 10/100 Ethernet- Supports Wake-On-LAN- Supports PXE Expansion / ConnectivitySlots- 1 x PCI Express x16 slot- 1 x PCI Express x1 slot- 2 x PCI slotsConnector- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, and Hot Plug functions- 1 x ATA133 IDE connector (supports 2 x IDE devices)- 1 x Floppy connector- 1 x DeskExpress Hot Plug Detection header- 1 x HDMI_SPDIF header- CPU/Chassis FAN connector- 24 pin ATX power connector- 4 pin 12V power connector- CD in header- Front panel audio connector- 1 x USB 2.0 header (supports 2 USB 2.0 ports)- 1 x WiFi/E headerRear Panel I/OASRock 6CH I/O Plus- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x Serial Port: COM1- 1 x VGA Port- 1 x Parallel Port (ECP/EPP support)- 6 x Ready-to-Use USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jack: Line in / Front Speaker / Microphone Other Features / MiscellaneousUnique FeatureHybrid Booster:- CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%Support CD- Drivers, Utilities, AntiVirus Software (Trial Version)Accessories- Quick Installation Guide, Support CD, I/O Shield- Floppy/ATA 133 Cables- 1 x SATA Data Cable - 1 x SATA 1 to 1 Power Cable - 1 x HDMI_SPDIF CableHardware Monitor- CPU Temperature Sensing- Chassis Temperature Sensing- CPU Fan Tachometer- Chassis Fan Tachometer- CPU Quiet Fan- Voltage Monitoring: +12V, +5V, +3.3V, VcoreForm Factor- Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cmOS- Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista⢠/ Vista⢠64-bit compliantCertifications- FCC, CE, WHQL
Product Specifications GeneralCPU- Support for Socket AM2+* / AM2 processors: AMD Phenom⢠FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor- AMD LIVE!⢠Ready- Supports AMD's Cool 'n' Quiet Technology- FSB 1000 MHz (2.0 GT/s)- Supports Untied Overclocking Technology- Supports Hyper-Transport Technology
*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.Chipset- NVIDIA® GeForce 6150SE / nForce 430Memory- Dual Channel DDR2 memory technology- 2 x DDR2 DIMM slots- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory- Max. capacity of system memory: 8GB**
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vistaâ¢. For Windows® XP 64-bit and Windows® Vista⢠64-bit with 64-bit CPU, there is no such limitation.BIOS- 4Mb AMI BIOS- AMI Legal BIOS- Supports "Plug and Play"- ACPI 1.1 Compliance Wake Up Events- Supports Jumperfree- SMBIOS 2.3.1 Support Audio, Video and NetworkingGraphics- Integrated NVIDIA® GeForce6-class graphics- DX9.0 VGA, Pixel Shader 3.0- Max. shared memory 256MB- Supports D-Sub with max. resolution up to 1920x1440 @ 60HzAudio- 5.1 CH Windows® Vista⢠Premium Level HD Audio (Realtek ALC662 Audio Codec)LAN- Realtek PHY RTL8201CL- Speed: 10/100 Ethernet- Supports Wake-On-LAN- Supports PXE Expansion / ConnectivitySlots- 1 x PCI Express x16 slot- 1 x PCI Express x1 slot- 2 x PCI slotsConnector- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, and Hot Plug functions- 1 x ATA133 IDE connector (supports 2 x IDE devices)- 1 x Floppy connector- 1 x DeskExpress Hot Plug Detection header- 1 x HDMI_SPDIF header- CPU/Chassis FAN connector- 24 pin ATX power connector- 4 pin 12V power connector- CD in header- Front panel audio connector- 1 x USB 2.0 header (supports 2 USB 2.0 ports)- 1 x WiFi/E headerRear Panel I/OASRock 6CH I/O Plus- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x Serial Port: COM1- 1 x VGA Port- 1 x Parallel Port (ECP/EPP support)- 6 x Ready-to-Use USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jack: Line in / Front Speaker / Microphone Other Features / MiscellaneousUnique FeatureHybrid Booster:- CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%Support CD- Drivers, Utilities, AntiVirus Software (Trial Version)Accessories- Quick Installation Guide, Support CD, I/O Shield- Floppy/ATA 133 Cables- 1 x SATA Data Cable - 1 x SATA 1 to 1 Power Cable - 1 x HDMI_SPDIF CableHardware Monitor- CPU Temperature Sensing- Chassis Temperature Sensing- CPU Fan Tachometer- Chassis Fan Tachometer- CPU Quiet Fan- Voltage Monitoring: +12V, +5V, +3.3V, VcoreForm Factor- Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cmOS- Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista⢠/ Vista⢠64-bit compliantCertifications- FCC, CE, WHQL
