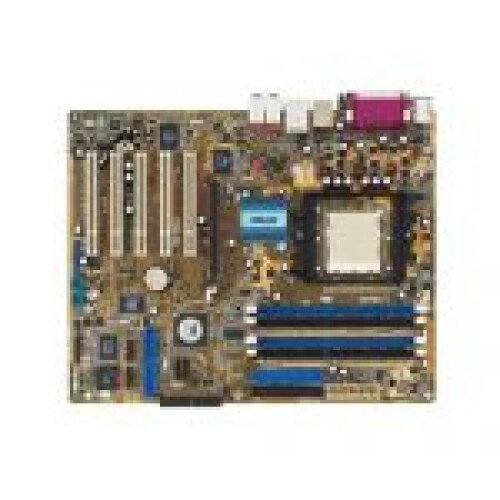

ASUS A8V Deluxe Socket 939

Specifications
CPU
AMD Socket 939 Athlon64/Athlon64 X2/ Processors

AMD Cool 'n' Quiet™ Technology

AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset
VIA K8T800Pro

VIA VT8237
System Bus
2000/ MT/s
Memory
4 x184-pin DIMM, Max. 4 GB, DDR 400/333/266 SDRAM ,ECC,Non-ECC,Un-buffered Memory

Dual Channel memory architecture
Expansion Slots
5 x PCI

1 x AGP 8x (1.5V only)
Storage
Southbridge

2 xUltraDMA 133/100/66/33

2 xSATA 3 Gb/s ports Support RAID 0,1,JBOD

Promise R20378 RAID controller

1 xUltraDMA 133/100/66/33

2 xSATA

Support RAID 0, RAID 1, RAID 0+1, and Multiple RAID
Audio
Realtek ALC850 8 -Channel CODEC

Coaxial / Optical S/PDIF out ports

Universal Audio Jack

Audio Sensing and Enumeration Technology
LAN
Marvell 88E8001 GbE Gigabit Lan PCI Controller supporting Gigabit/100/10 BASE-T Ethernet Virtual Cable Tester(VCT) Net-Diagnosing Utility
IEEE 1394
VIA 1394 Controller supports 2 x 1394a ports
BIOS
4 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3

ASUS QFAN

ASUS CrashFree BIOS 2
USB
8 USB 2.0 ports
Overclocking Features
Intelligent overclocking tools

- ASUS JumperFree

Precision Tweaker

- CPU, Memory, and AGP voltage adjustable

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 300MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS

ASUS MyLogo 2

ASUS EZ Flash

ASUS Instant Music Lite

ASUS Wi-Fi@Home

ASUS Instant Music
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x S/PDIF Out

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports

1 x IEEE 1394a connector

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x4-pin ATX 12V Power connector

20 -pin ATX Power connector

Front panel audio connector

COM connector

Game/MIDI port connector

Chassis Intrusion connector

CD/AUX audio in
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,Chasis Intrusion,
Support Disc
Drivers

ASUS PC Probe

ASUS LiveUpdate Utility

Trend Micro PC-cillin 2002 anti-virus software (OEM version)
Accessories
- ASUS WiFi-g™ card (on Wireless edition only)

- InterVideo WinDVD Suite Platinum

- User's manual

- 2 x UltraDMA cables

- IDE cable

- FDD cable

- 4 x Serial ATA cables

- 2 x 2-port SATA power cables

- 2-port USB2.0 / Game module

- I/O shield

- IEEE1394 cable
Form Factor
ATX Form Factor

12 inchx 9.6 inch ( 30.5 cm x 24.5 cm )
