Introduction
Taiwan Patent NO. 185566

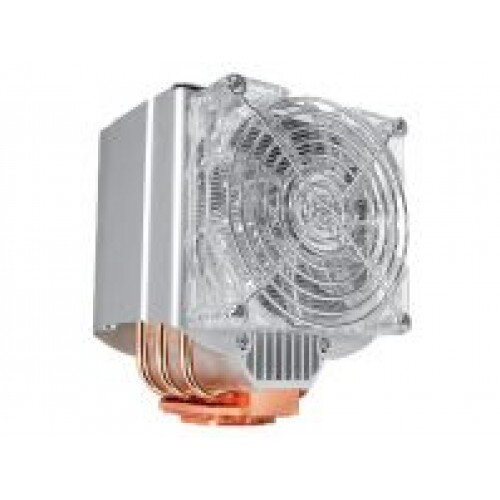

Hyper 6+ is built for high performance with a uniquely designed of universal retention module. This super silent CPU cooler, with heat-pipe technology, successfully takes heat away. And its 100mm fan provides mass airflow and high air pressure to maximum heat dissipation. The powerful and quiet operation of the Hyper 6+ supports the latest Prescott LGA775, Core 2 Dual, Pentium D, Pentium 4, AMD's K8 and K7.
Features
- Universal Retention Module for Intel Core 2 Duo, Pentium D, Pentium 4, Celeron amp; Celeron D, AMD Athlon 64 X2 Dual Core, AMD Athlon 64 FX, AMD Athlon 64, and Sempron.
- Six embedded heat pipes provide superb heat dissipation.
- Special heatsink design achieved maximum cooling performance at any mounted angle.
- Raised base design to avoid interfering with components surrounding the CPU.
- Special welding techniques enable seamless connections between fins and pipes.
- High-density saw-toothed fins provide a large surface area and make more heat dissipation.
- Greater cooling performance with optional high-speed 100mm fan.
Note:
You could also connect the PWM 4-pin connector to the general 3-pin mainboard. If your mainboard supports PWM 4-pin connector, Hyper 6+ will control the fan speed through PWM function of the mainboard; if your mainboard supports general 3-pin connector,the Hyper 6+ will run the lowest fan speed.
Specifications
Socket Type
Socket A/370/462/478/754/939/940/LGA 775, Note: only compatible with Socket A motherboard which includes mounting holes
Heat Sink Dimensions
118x82x143 mm
Heat Sink Material
6 heat pipes, aluminum and copper alloy
Fan Dimension (W / H / D)
100x100x25 mm
Fan Speed
1800 ~ 3600 R.P.M. (Control by PWM)
Fan Airflow
31.33 ~ 72.14 CFM
Fan Life Expectancy
50,000 hrs
Bearing Type
Rifle Bearing
Fan Noise Level (dB-A)
20.6 ~ 46.4 dB(A)
Connector
4 pin (PWM) / 3 pin (without PWM) (Foolproof Design)
Weight
795.3g (without FAN)
Voltage
12 V
Fan Speed Adjustment
PWM Mode
