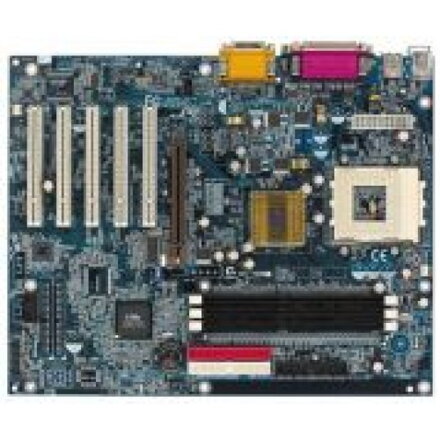

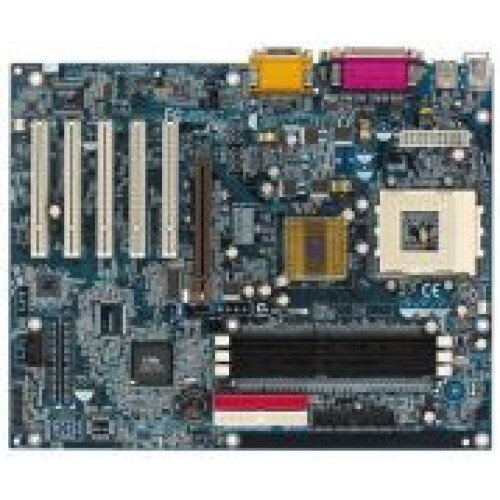

GA-7DXE

CPU Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors

Supports 500MHz ~ 2000+ and faster

1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) Auto-detects CPU Voltage



Chipset AMD 761™ north bridge and VIA 686B south bridge

VIA 686 audio



Memory Supports up to 3GB DDR SDRAM

3 DIMMs of 184-pin DDR sockets

Supports either PC1600/DDR200 or PC2100/ DDR266 DDR memory

Supports 72bits ECC type DRAM integrity mode



Expansion Slots 1 x AGP 4X

5 x PCI slots support 33MHz and PCI 2.2 compliant



I/O Controller 2 x UDMA ATA 66/100 bus master IDE ports on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board

2 x USB 1.1 ports on board, 2 x USB 1.1 by cable

IrDA TX / RX header



Power ATX power connector

Power-off by Windows® 95/98/Me/2000/XP/NT shut down and Switch



Form Factor ATX form factor, 4 layers PCB (30.5 x 24.4 cm)



H/W Monitoring 2 cooling fan connectors

System health status detect and report by BIOS

H/W detect and report Power-in voltage, CPU voltage and CMOS battery status



BIOS IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable

AC recovery ON/OFF control

Auto-detect and report system health status

Supports @BIOS™



Other Features Suspend-To-RAM (STR)

Supports USB KB Wake up from S3

Provides 2 fan power connectors

Poly fuse for keyboard over-current protection

Supports EasyTune III™ and Q-Flash



Driver AMD service pack utility

VIA 686 audio driver
