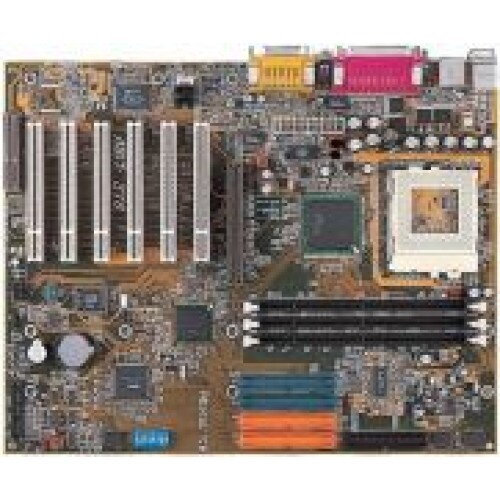

ABIT ST6

CPUSupports Intel Pentium® III socket processor based on 100 amp; 133 MHz FSB (FCPGA amp; FCPGA2)

Supports Intel Celeron® socket processor based on 66/100 MHz FSB (FCPGA amp; FCPGA2)

Reserves support for future Intel Pentium® III/ Celeron socket processor

Chipset

Intel 815EP B-Step(ICH2) chipset

Supports 66/100/133MHz (Front Side Bus)

Supports AGP 1X/2X/4X (Sideband) 1.5V/3.3V device

Supports Advanced Configuration and Power Management Interface (ACPI)

Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode

Platform meets VRM8.5 specification

Memory

Three 168-pin DIMM sockets support SDRAM module

Supports up to 512MB MAX. (64, 128, 256MB SDRAM)

Supports 100MHz, 133MHz SDRAM interface

Audio

AC'97 Digital Audio controller integrated

AC'97 2-Channel Audio CODEC on board

System BIOS

SOFT MENUTM III Technology and DIP switches function

Award Plug and Play BIOS supports APM and ACPI

Write-Protect Anti-Virus function by AWARD BIOS

Multi I/O Functions

2 Channels Bus Master IDE Ports support Ultra DMA 33/66/100

PS/2 Keyboard and PS/2 Mouse Connectors

1 Floppy Port (up to 2.88MB)

1 Parallel Port (EPP/ECP)

2 Serials Ports

2 ports USB Connectors

On board USB header for two extra USB channels

Audio connector (Line-in, Line-out, Mic-in, and Game Port)

Miscellaneous

ATX form factor

1 Universal AGP slot, 6 PCI slots and 1CNR slot

Hardware Monitoring – Including Fan speed, Voltages, CPU and System temperature and one thermal header for other devices temperature monitoring

Built-in Wake on LAN / Wake on Modem header

Keyb
