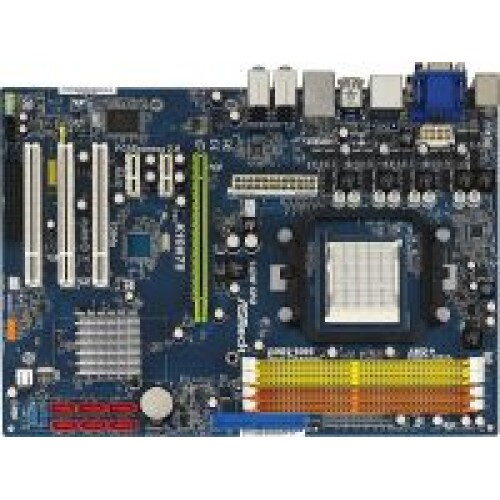

ASRock K10N78 socket AM2 AM2+

Product Specifications
General
CPU
- Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

- Supports CPU up to 140W

- AMD LIVE!™ Ready

- Supports AMD's Cool 'n' Quiet Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

- AM3 CPU Ready
Chipset
- NVIDIA® GeForce 8200
Memory
- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB**

*Support with AM3 / AM2+ CPU.



**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 8Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, DRAM, Chipset Core, HTT Voltage Multi-adjustment

- Supports Smart BIOS
Audio, Video and Networking
Graphics
- Integrated NVIDIA® GeForce 8200

- DX10 VGA, Pixel Shader 4.0

- Max. shared memory 512MB

- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz

- Supports HDCP function with DVI-D port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port

- NVIDIA® PureVideo™ HD Ready
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

- Chipset embedded HDMI Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY RTL8211CL-GR

- Supports Wake-On-LAN

- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)

- 2 x PCI Express x1 slots

- 3 x PCI slots

- Supports NVIDIA® Hybrid SLI™
Connector
- 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and "Hot Plug" functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB/WiFi header
Rear Panel I/O
I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock OC Tuner

- Intelligent Energy Saver (Support with Phenom CPU)

- Instant Boot

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 2 x SATA Data Cables

- 1 x SATA 1 to 1 Power Cable
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.4-in, 30.5 cm x 21.3 cm
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
