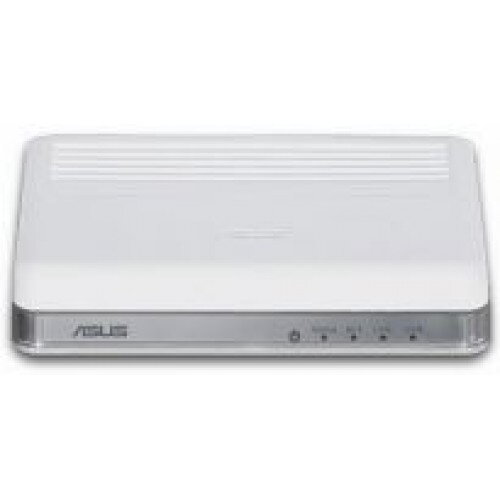

ASUS AM602

ADSL 2+ Router + USB





Specification



Features T1.413 Issue 2, G.dmt, and G.lite compliant

Supports full range of ADSL standards

ADSL2/2+, RE-ADSL Support

Compatible with all major DSLAMs

F5 OAM Loopback/Send and Receive

Multiple PVC up to 8 support

USB Plug-and-Play installation

Annex A, and Annex B support



ADSL Features RADSL (ANSI T1.413 Issue 2)

G.dmt ADSL over POTS (G.992.1 Annex A)

G.dmt ADSL over ISDN (G.992.1 Annex B)

G.lite (G.992.2)

G.hs (G.994.1)

Auto-negotiating rate adaptation

ADSL2 G.dmt.bis (G.992.3)

ADSL2 G.lite.bis (G.992.4)

ADSL2+ (G.992.5)



Protocol Support ANSI T1.413 issue 2

ITU-T G.992.1, G992.2, G994.1

RFC 1483/2684 (Bridged/Routed Ethernet over ATM)

USB support PPP over ATM (RFC 2364)

USB support PPP over Ethernet (RFC 2516)

ITU-T 1.610 F4-F5 OAM Send and Receive/Loop back

Transparent Bridge Support

PAP/CHAP/MS-CHAP for password authentication support

DHCP Server/Relay/Client

DNS Relay Agent

DMZ Support

PPP Always on with configurable timeout



External Connectors One USB port with specification v1.1 compliant

One Ethernet 10/100Mbps Base-T

One RJ-11 port for ADSL connection

Power Jack



Compliance Certificates FCC Part 15, Part 68

CE Mark



Management Support Web-base Configuration GUI

Command-line interpreter (CLI)

Telnet Remote Management

SNMP MIB Support

FTP/TFTP firmware upgrade and configuration backup/restore

Syslog Support



Security Support NAT for Basic Firewall Support

Packet Filtering Firewall Support

Stateful Packet Inspection Ssupport

Protection against Denial of Service attacks

Password Authentication to Modem



Environmental Operating Temperature: 0°C ~ 50°C

Humidity: 5% ~ 95% (non-condensing)

Storage Temperature: -40°C ~ 70°C
