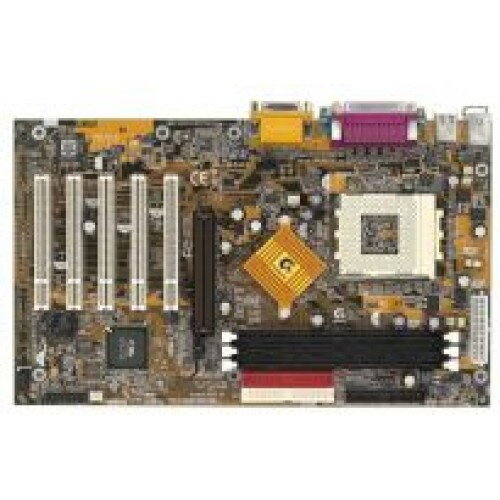

GA-7ZXE (Rev 1.x)

CPU Socket A for AMD Athlon™ /Duron™ 266/200MHz FSB processors

Supports 600MHz ~ 1.5GHz and faster

AUTO detect CPU voltage



Chipset VIA VT8363A (KT133A) North bridge

VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)

AC97 codec



Memory 3 168-pin DIMM sockets

Supports PC-100 / PC-133 SDRAM and VCM SDRAM

Supports up to 1.5GB DRAM

Supports only 3.3V SDRAM DIMM



Expansion Slots 1 x AGP slot supports 4X mode AGP 2.0 compliant

5 x PCI slots support 33MHz PCI 2.2 compliant



I/O Controller 2 x UDMA 33/66/100 bus master IDE ports on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board

1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board (optional)

2 x USB ports on board

2 x USB ports by cable (optional accessary)

IrDA TX / RX header ready



Power ATX power connector

Power-on by LAN, RTC, Modem switch

Power-off by Windows® 95/98/2000 shut down switch



Form Factor ATX , 4 layer PCB (30.4*18.3cm)



H/W Monitoring System voltage detect (Vcore,VDD ,Vcc,+12V)

H/W detect report Power-in voltage, CPU voltage and CMOS battery status

CPU/System fan revoltion temperature detect



BIOS AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP CD-ROM bootable

Auto-detect report system health status

Supports @BIOS™ Live Update



Other Features Includes 3 fan power connectors

PC99 connectors

Mosfets cooled by CPU fan

Supports EasyTune III™



Driver Gigabyte Windows Utility Manager

VIA 4 in 1 service pack utility
