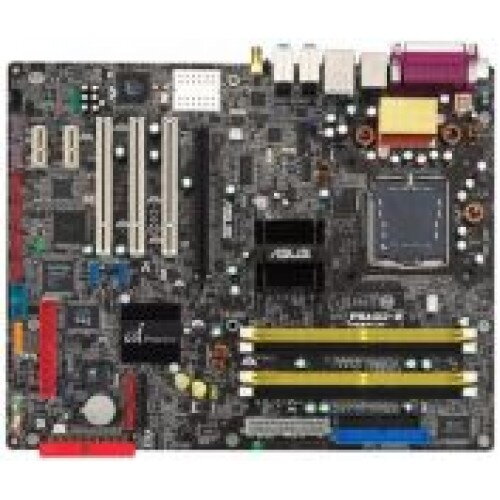

ASUS P5AD2-E Premium

CPU
Intel Socket 775 Pentium® 4/Celeron Processors

Intel® Hyper-Threading Technology ready
Front Side Bus
1066/800/533/ MHz
Expansion Slots
1 x PCIe 2.0 x16 slot for discrete graphics card

2 x PCIe x1

3 x PCI
Storage
Southbridge

1 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports Support RAID 0,1,

Silicon Image® 3114R RAID controller

4 xSATA RAID 0, 1, 10, 5 (RAID 5 software patch available, no WHQL)

ITE IDE RAID controller2 x UltraDMA 133/100/66 with JBOD, RAID 0, 1, 0+1 support
LAN
Dual Gigabit/ LAN controllers 2 x Marvell PCIe 88E8053 Gigabit/ LAN Controller, features AI NET2
Wireless LAN
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b

Software Access Point mode
Audio
C-Media High Definition Audio 8 -Channel CODEC

Coaxial / Optical S/PDIF out ports

S/PDIF out on back I/O port
IEEE 1394
1 x 1394a ports @ 400 Mbps speed
USB
8 USB 2.0 ports
Overclocking Features
Intelligent overclocking tools

- ASUS AI NOS (Non-delay Overclocking System)

SFS (Stepless Frequency Selection)

- FSB tuning from 100MHz up to 400MHz at 1MHz increment

- DDR Memory tuning from up to

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS

ASUS MyLogo 2

ASUS CrashFree BIOS 2

ASUS Q-Fan 2

ASUS POST Reporter
BIOS
8 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel

1 x Audio I/O

1 x PS/2 Keyboard

1 x S/PDIF Out

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

8 -Channel Audio I/O

1 x WLAN antenna jack (optional)
Internal I/O Connectors
1 x USB connectors supports additional 4 USB 2.0 ports

2 x IEEE 1394a connector

1 x CPU Fan connector

2 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

COM connector

Game/MIDI port connector

Chassis Intrusion connector

CD/AUX audio in
Support Disc
Drivers

ASUS PC Probe

Anti-virus software (OEM version)

ASUS LiveUpdate Utility
Accessories


InterVideo WinDVD Suite (OEM version)

1 x Wireless LAN antenna (optional)

1 x 2-port IEEE1394b / 1-port RJ45 module

10 x Serial ATA cables

1 x SATA Extension module for external devices

4 x 2-port SATA power cable

1 x 2-port USB2.0 / Game module

1 x COM Port module

2 x UltraDMA 133/100/66 cable

1 x IDE cable

1 x FDD cable

1 x I/O Shield

User's manual
Form Factor
ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
