Product Features

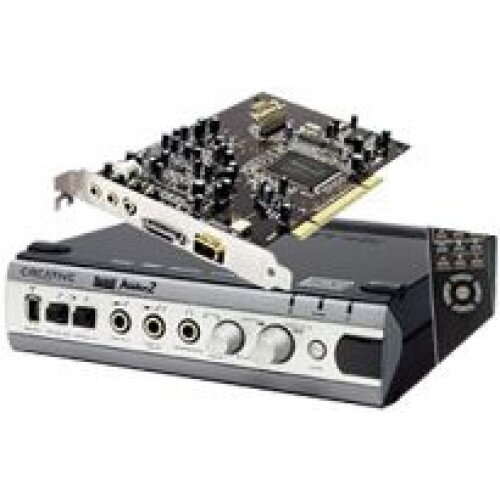

Creative Audigy 2 ZS audio processor
PCI interface, External I/O drive
192 kHz max sampling rate
6.1 channel surround sound output mode
64 Voice polyphony, 32 MIDI Channels
Technical Details
Interface: IEEE 1394 / FireWire / i-Link compatible; SPDIF (Sony/Philips Digital Interface) input
Sample rates: playback: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz in 6.1 mode and up to 192kHz in stereo mode, recording: 8, 16 or 24-bit at sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
Frequency response: Less than 10Hz to 46kHz for 2v rated output, less than 10Hz to 46kHz for 1v rated output
Supported playback modes: Wave-Table Synthesis, MIDI
Polyphony: 64-voice polyphony with 8-point interpolation
Signal-to-noise ratio: For 2v/1v output: Stereo Output 106dB/102dB; Front and Rear Channels: 106dB/102dB; Center, Subwoofer, and Rear Center: ~90dB/~86dB; Total Harmonic Distortion + Noise at 1kHz: 0.004 percent /0.004 percent
Synthesis: multi timbral wave-table (16 channels)
Supported APIs: EAX ADVANCED HD
Input/output connectors: Headphone Out (1/4" Stereo Jack); Line In 1 (1/4" Stereo Jack, shared with Microphone In with Gain Control); Line In 2 (1/4" Stereo Jack); Line In 3 (2x RCA Jack); Optical SPDIF In/Out; Coaxial SPDIF In/Out; Digital Out for 5.1 support (6-channel SPDIF Output to Creative digital speakers); 2x SB1394 / FireWire ports; MIDI In/Out (Optional gameport adapter required for Midi I/O 2); Infra-red Receiver
Internal connectors: Line level out (Front / Rear / Center / Subwoofer /Rear Center); AD_LINK 1 and AD_LINK 2 connectors; power connector; 15-pin MIDI/Joystick port extension header
Extra features: Flexible Front Panel Connectivity Options: DV Camcorder, MiniDisc Player, Set Top DVD Player/Game Console, Electric Guitar/ Pre-amp FX Box, Microphone/Sound Module, Headphones, Push to mute/unmute, Stereo to 6.1 Virtualization Upmix, Remote Control
Software: Creative Software synthesizer
Compatibility: PC
PC system requirements: Genuine Intel Pentium II, Celeron 350MHZ, AMD-K6 450MHz or faster, Motherboard Intel, AMD or 100% compatible, 64MB of memory for Windows 98SE and Me, 128MB of memory for Windows 2000 SP2 and XP, 600MB free hard disk space, Windows 98SE, Me, 2000 SP2 or XP, Available PCI 2.1 compliant slot, Available adjacent slot for Joystick/MIDI bracket (optional), Headphones or amplified speakers (available separately), CD-ROM or DVD-ROM drive required for software installation
Creative Audigy 2 ZS audio processor
PCI interface, External I/O drive
192 kHz max sampling rate
6.1 channel surround sound output mode
64 Voice polyphony, 32 MIDI Channels
Technical Details
Interface: IEEE 1394 / FireWire / i-Link compatible; SPDIF (Sony/Philips Digital Interface) input
Sample rates: playback: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz in 6.1 mode and up to 192kHz in stereo mode, recording: 8, 16 or 24-bit at sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
Frequency response: Less than 10Hz to 46kHz for 2v rated output, less than 10Hz to 46kHz for 1v rated output
Supported playback modes: Wave-Table Synthesis, MIDI
Polyphony: 64-voice polyphony with 8-point interpolation
Signal-to-noise ratio: For 2v/1v output: Stereo Output 106dB/102dB; Front and Rear Channels: 106dB/102dB; Center, Subwoofer, and Rear Center: ~90dB/~86dB; Total Harmonic Distortion + Noise at 1kHz: 0.004 percent /0.004 percent
Synthesis: multi timbral wave-table (16 channels)
Supported APIs: EAX ADVANCED HD
Input/output connectors: Headphone Out (1/4" Stereo Jack); Line In 1 (1/4" Stereo Jack, shared with Microphone In with Gain Control); Line In 2 (1/4" Stereo Jack); Line In 3 (2x RCA Jack); Optical SPDIF In/Out; Coaxial SPDIF In/Out; Digital Out for 5.1 support (6-channel SPDIF Output to Creative digital speakers); 2x SB1394 / FireWire ports; MIDI In/Out (Optional gameport adapter required for Midi I/O 2); Infra-red Receiver
Internal connectors: Line level out (Front / Rear / Center / Subwoofer /Rear Center); AD_LINK 1 and AD_LINK 2 connectors; power connector; 15-pin MIDI/Joystick port extension header
Extra features: Flexible Front Panel Connectivity Options: DV Camcorder, MiniDisc Player, Set Top DVD Player/Game Console, Electric Guitar/ Pre-amp FX Box, Microphone/Sound Module, Headphones, Push to mute/unmute, Stereo to 6.1 Virtualization Upmix, Remote Control
Software: Creative Software synthesizer
Compatibility: PC
PC system requirements: Genuine Intel Pentium II, Celeron 350MHZ, AMD-K6 450MHz or faster, Motherboard Intel, AMD or 100% compatible, 64MB of memory for Windows 98SE and Me, 128MB of memory for Windows 2000 SP2 and XP, 600MB free hard disk space, Windows 98SE, Me, 2000 SP2 or XP, Available PCI 2.1 compliant slot, Available adjacent slot for Joystick/MIDI bracket (optional), Headphones or amplified speakers (available separately), CD-ROM or DVD-ROM drive required for software installation
