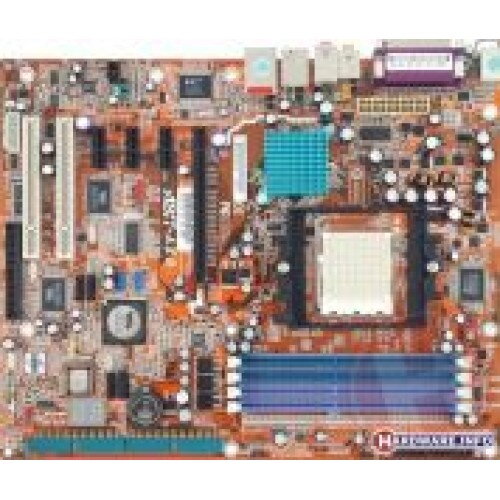

ABIT AX8

Model
Brand
ABIT
Model
AX8
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 FX / Athlon 64 / Sempron
FSB
1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge
VIA K8T890
South Bridge
VIA VT8237
Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1
PCI Express x1
3
PCI Slots
2
Storage Devices
PATA
3 x ATA100 6 Dev Max.
SATA 1.5 Gb/s
4
SATA RAID
0/1/0+1
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
AC97 Codec
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical
S/PDIF In
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
20 Pin
Features
Features
µGuru
µGuru is a new microprocessor designed by the ABIT Engineers for use only on ABIT motherboards. µGuru combines the ABIT Engineered features ABIT EQ, ABIT FanEQ, ABIT OC Guru, ABIT FlashMenu, ABIT AudioEQ and ABIT BlackBox into a user-friendly interface providing users the perfect environment with which to maximize performance and stability.
