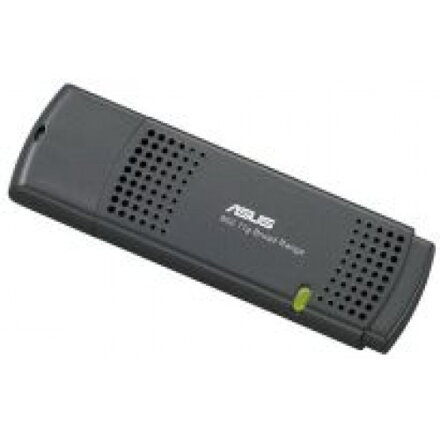

ASUS WL-169gE

Host interface
USB2.0
Form Factor
USB Wireless Dongle
Operation Voltage
5.0VDC
Network Standard
IEEE 802.11b/
Modulation Techniques
BPSK, QPSK, CCK, 16QAM, 64QAM
Modulation Technology
OFDM, DSSS
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Network Architecture Types
Infrastructure and Ad Hoc
Operating Frequency
2.412 -2.484 GHz
Antenna
Planar Inverted-F Antenna (PIFA)
Operation Channel
802.11b: 11 for North America, 13 for Japan, 13 for Europe (ETSI)

802.11g: 13 for North America, 13 for Europe (ETSI), 13 for Japan
RF Output Power
802.11g:

13.5 dBm(for All Location)

typical output power (± 1.5 dBm over operating temperature)



802.11b:

17.5 dBm (for US)；14 dBm(for Other Location)

typical output power (± 1.5 dBm over operating temperature)
Receiver Sensitity
11b: -86dBm @ 11Mbps and PERlt;8%

11g: -69dBm @ 54Mbps and PERlt;10%
DC Power Adapter
Tx : 11b:380mA ,11g:300mA@ 5V DC; Rx : 200 mA @ 5VDC;

Idle: 100mA @ 5V DC
Security
Hardware 64/128-bit WEP engine; WEP weak-key avoidance, TKIP, hardware AES engine supporting CCM and OCB, 802.1x, SSN
Client Utility
Automatic location profile, site monitor, current link status, and diagnostics
Support OS
Microsoft WHQL certified for Windows XP
Temperature
Operates from 0 to 55 C;

Storage from -20 to 70 C
Humidity
5 to 95%
