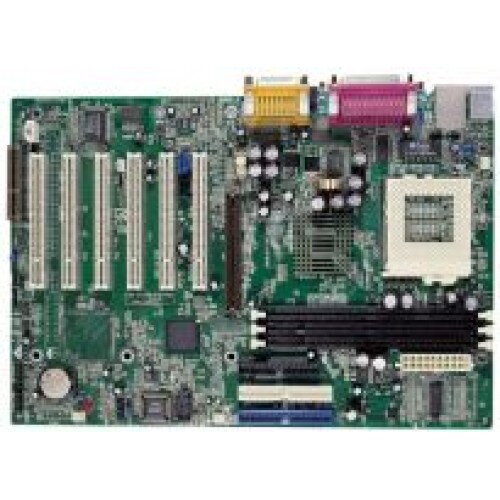

SynactiX 5EP

Chipset


Intel 815EP

North Bridge: Intel 815EP(MCH)

South Bridge: Intel 82801BA (ICH2)
Slots
6 PCI slots, 1 CNR, 1 AGP
CPU
Support Socket 370 processors

Intel Pentium III FC-PGA processors

at 500E/533EB/550E/600E/600E/600EB/650/667/700/733/750/800/800EB

/850/866/933MHz ,1.0/1.1/1.2GHz

Intel Celeron processors at 300A/333/366/400/433

/466/500/500A/533/533A/566/600/633/667/700/733/766/800/900 MHz 1.0/1.1GHz

VIA Cyrix-III processors at 500/533/550/600/667/700/733/750/800MHz
System Memory
Three 168 pin 3.3V PC133 DIMM sockets

Support up to 512MB SDRAM

Support 100/133MHz Synchronous DRAM
Bus Speed
100/133MHz FSB

Overclock up to 166MHz
BIOS
4 Mbit Intel firmware Hub

Licensed advanced AWARD BIOS

Support Plug and Play

Support ACPI and OS directed power management
Storage system
Two PCI Master IDE ports support up to 4 IDE devices

Support ATA/66/100

One Floppy port support up to two 3.5¡± or 5.25¡± floppy Driver

(360K/720K/1.2M/1.44M/2.88M)

Support LS-120 floppy disk drive and ZIP drive
I/O Feature
2 high speed Serial Ports (16550 Fast UART Compatible)

1 Enhanced Parallel Port support EPP/ECP/SPP

4 USB ports support USB1.1(2 USB on back panel, 2 USB on front header)

1 PS/2 keyboard port

1 PS/2 mouse port

1 Speaker+ 1 Line in+ 1 Mic

1 Game port

IrDA port support up to 115.2Kb/s transfer rate

All I/O ports can be enabled/disabled by BIOS setup
AGP 4X Slot
Provides AGP 4X interface

Universal AGP slot
Onboard Audio

(SX5EP-A only)
AC' 97 2.1 Compliant

16-bit Stereo Codec

Upgradable to six channels audio with CNR card
Advanced Feature
4 Enhanced Diagnostic LEDs onboard to indicate POST status

CPU core voltage adjustment for overclocking

Wakeup on LAN

Wake up on Modem

Power-on by keyboard password

Trend ChipAway Virus on Guard
QDI Innovative Technology
BootEasy,RecoveryEasy, SpeedEasy, BIOS-ProtectEasy, ManageEasy,LogoEasy,StepEasy
Power management
CPU temperature, System temperature, CPU fan speed,

Chassis fan speed, 8 System Voltages

Power Management

ACPI v1.0 and APM Compliant

Support S0,S1,S3,S5 ACPI power status

Support suspend To RAM
LAN
(SX5EP-L only)Onboard 10/100M LAN(Intel 82559 core built-in)
Board Size
ATX: 305 x 210mm
